Description
SPECIFICATIONS
Action time : 5-15 seconds
Applicable medium temperature : -10-100℃
Body material : Brass
Brand Name : Acarps
Certification : CE
Connection method : G female thread
Driving voltage : 220VAC, 24VDC, 12VDC
Lead length : 30 cm
Material : Brass
Media : Water
Medium : Cold water, Hot water or 50% Glycol solution
Model Number : Waterproof Electric Ball Valve
Nominal Pressure : 1.6 MPa
Origin : Mainland China

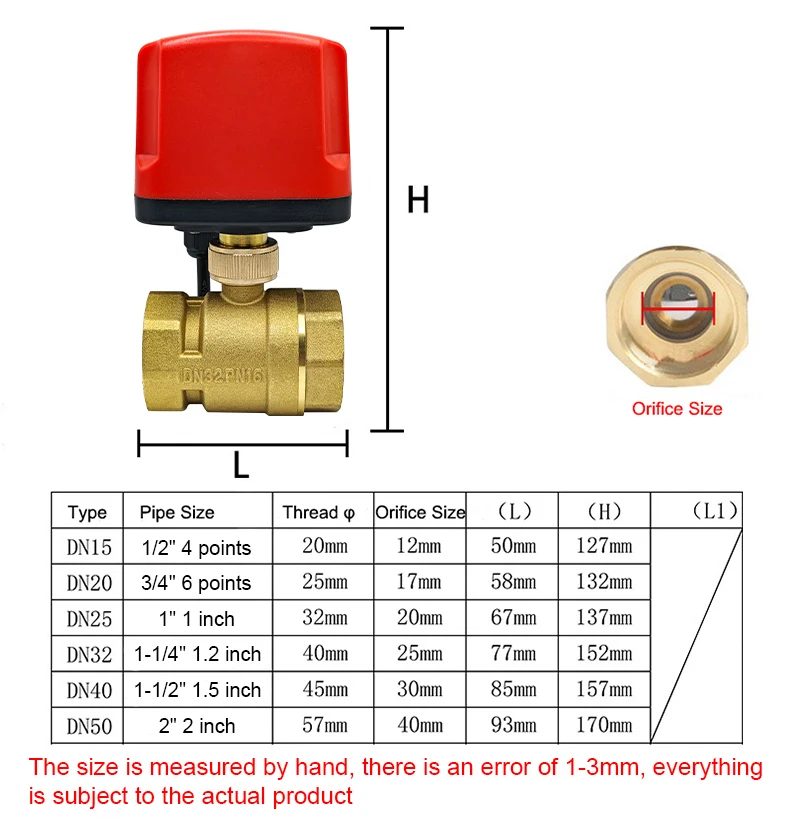

Port Size : DN15(1/2"),DN20(3/4"),DN25(1"),DN32(1-1/4"),DN40(1-1/2"),DN50(2")
Power Source : AC
Power consumption : 6 W (only when the valve is opened and closed)
Standard or Nonstandard : Standard
Structure : Ball

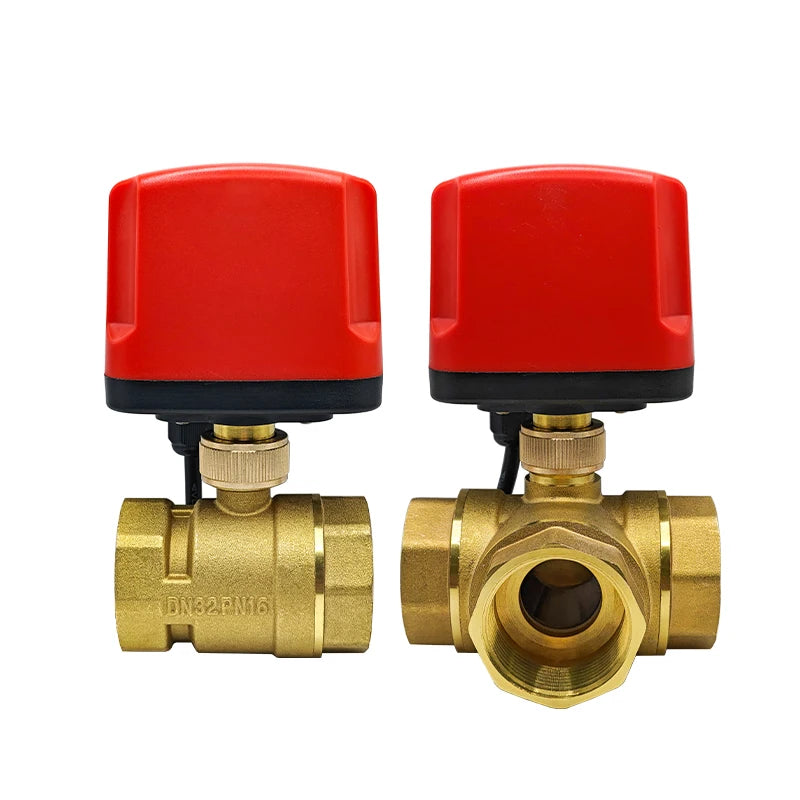

Structure Forms : Two-Way/Three-Way
Temperature of Media : Normal Temperature
Wiring mode : Three-Wire two-control Three-Wire one-control

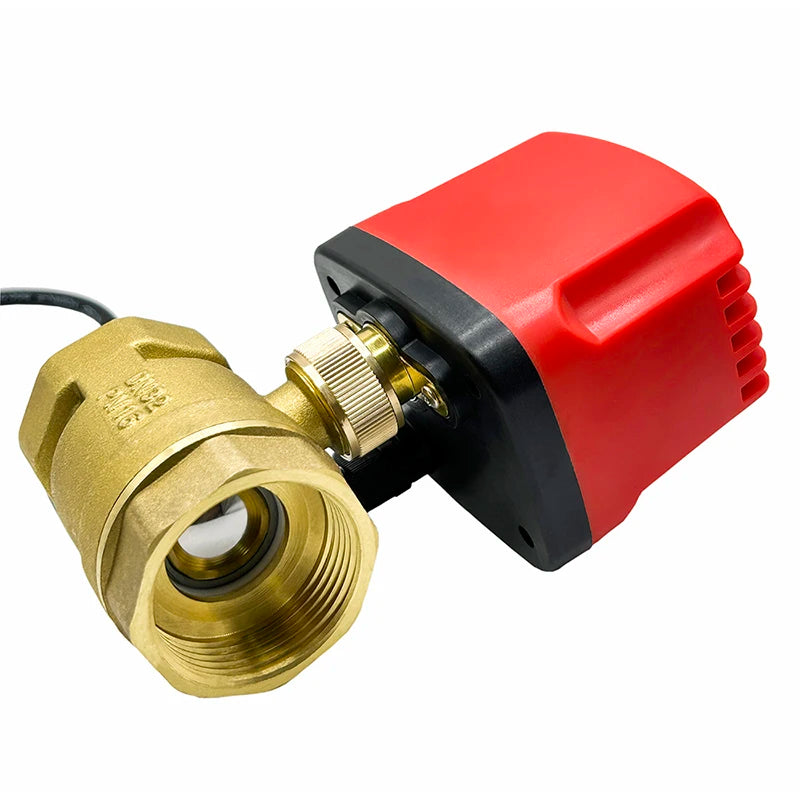

Product description

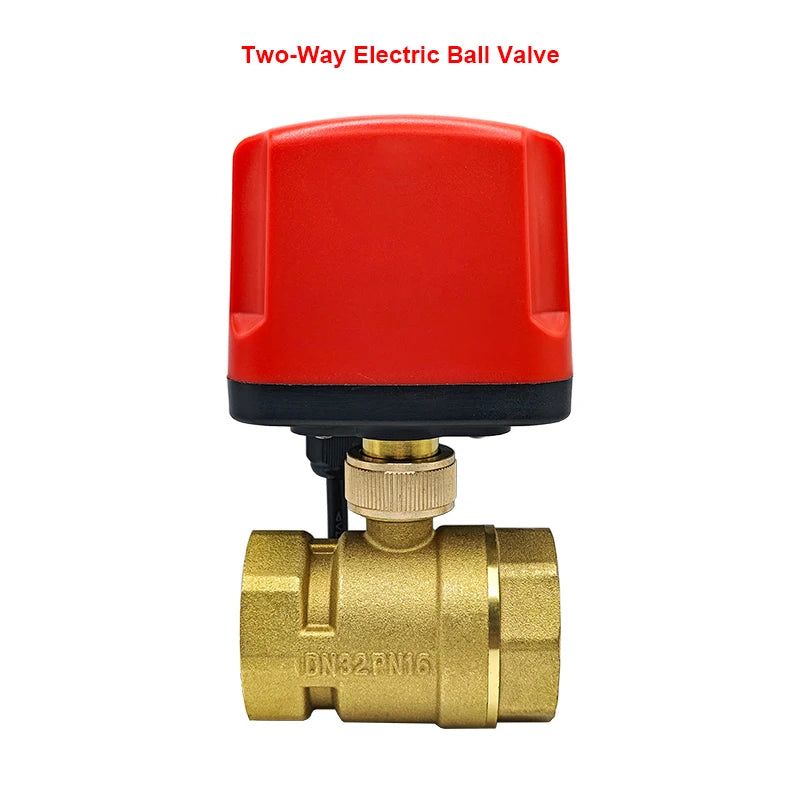

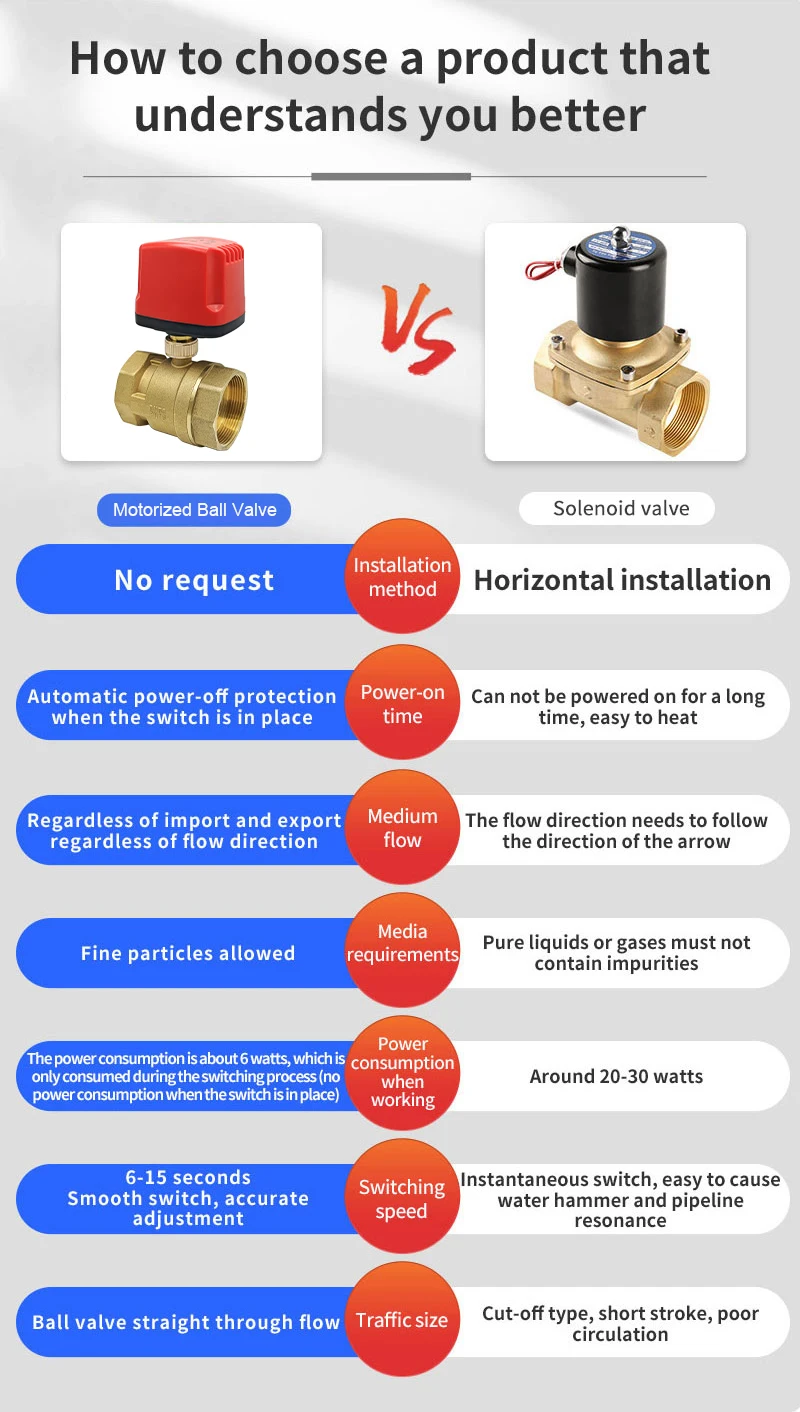

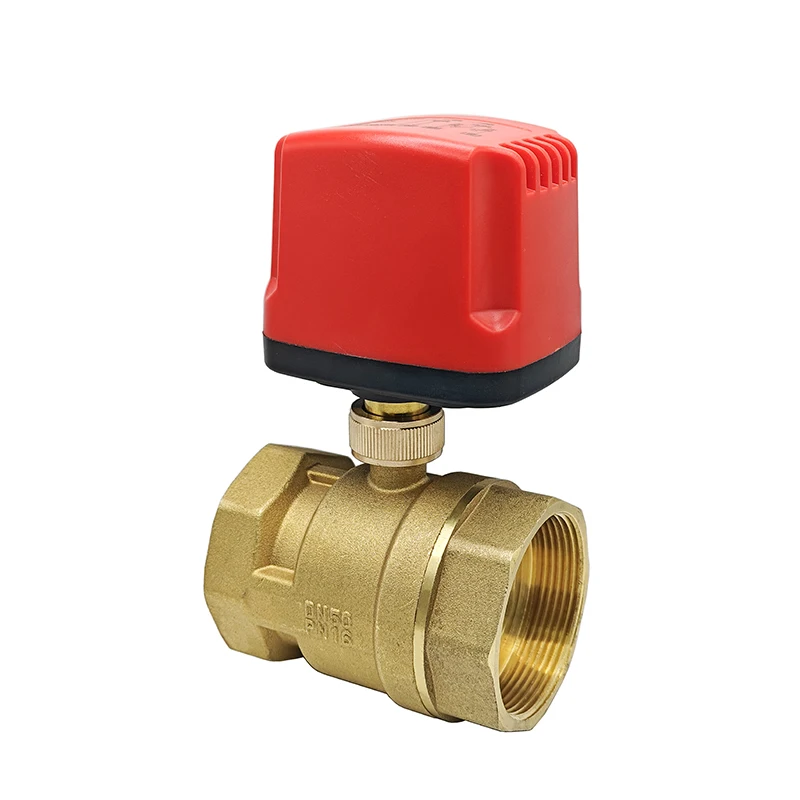

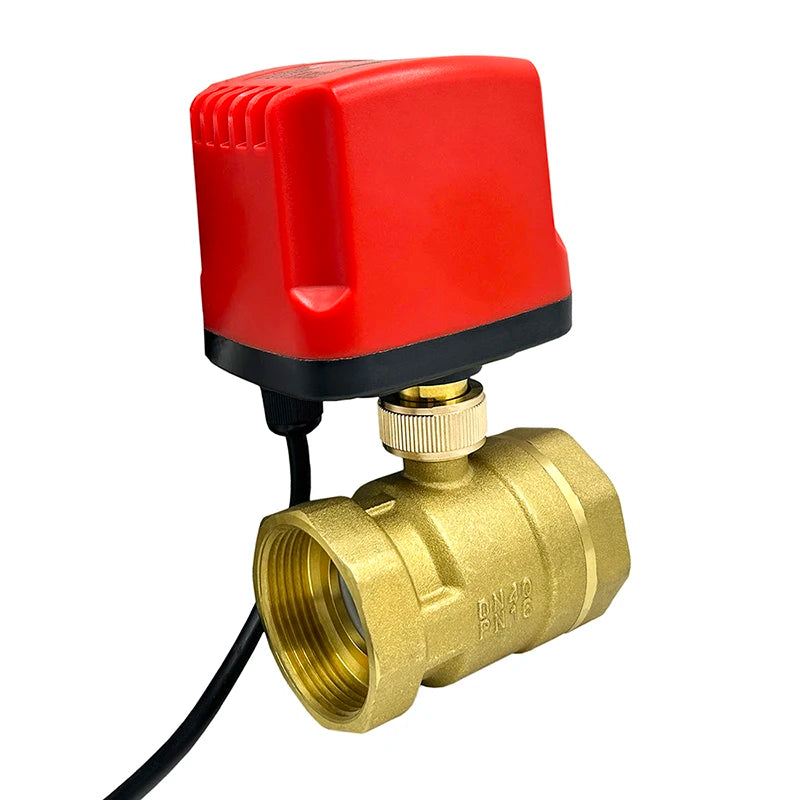

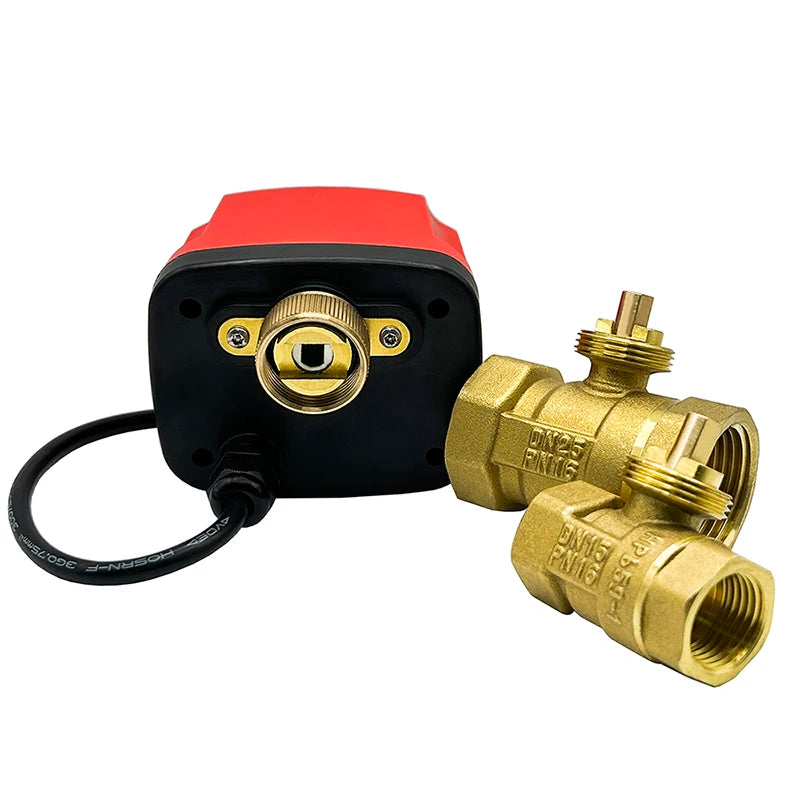

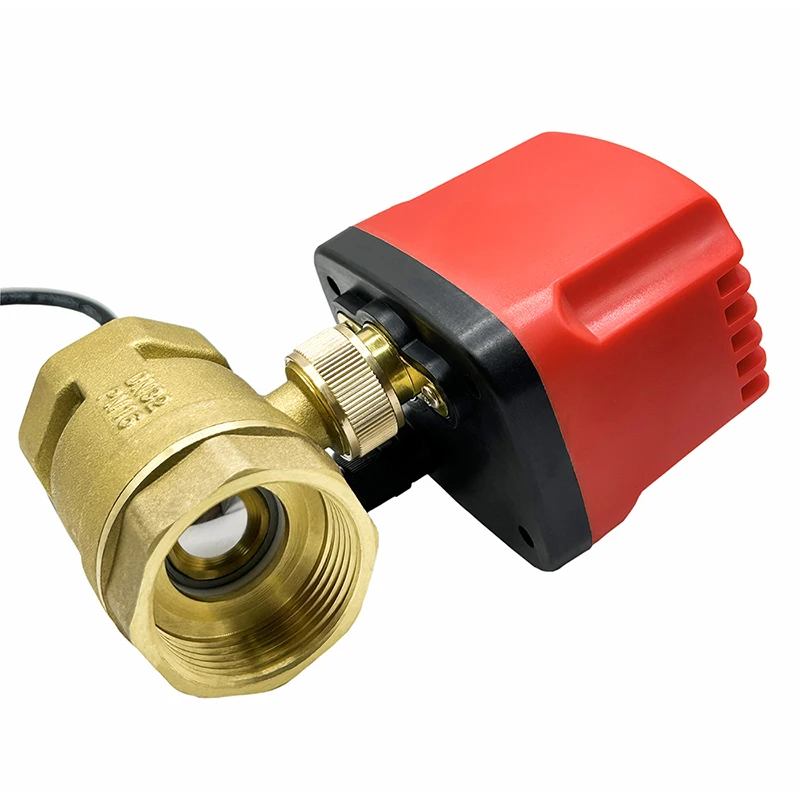

Motorized ball valve consists of valve body and driver. It has the advantages of waterproof, simple structure, reliable operation, strong liquid passing ability and energy saving. It can be widely used in heating, central air conditioning, solar water heating system, water treatment system cold and hot water switch control.
Specification
Applicable medium: cold, hot water or 50% glycol solution
Material: Brass, flame-retardant PC material
Control method: CR02(Three wire two control), CR03(Three-wire one-control), CR04(Two-wire power-off reset)

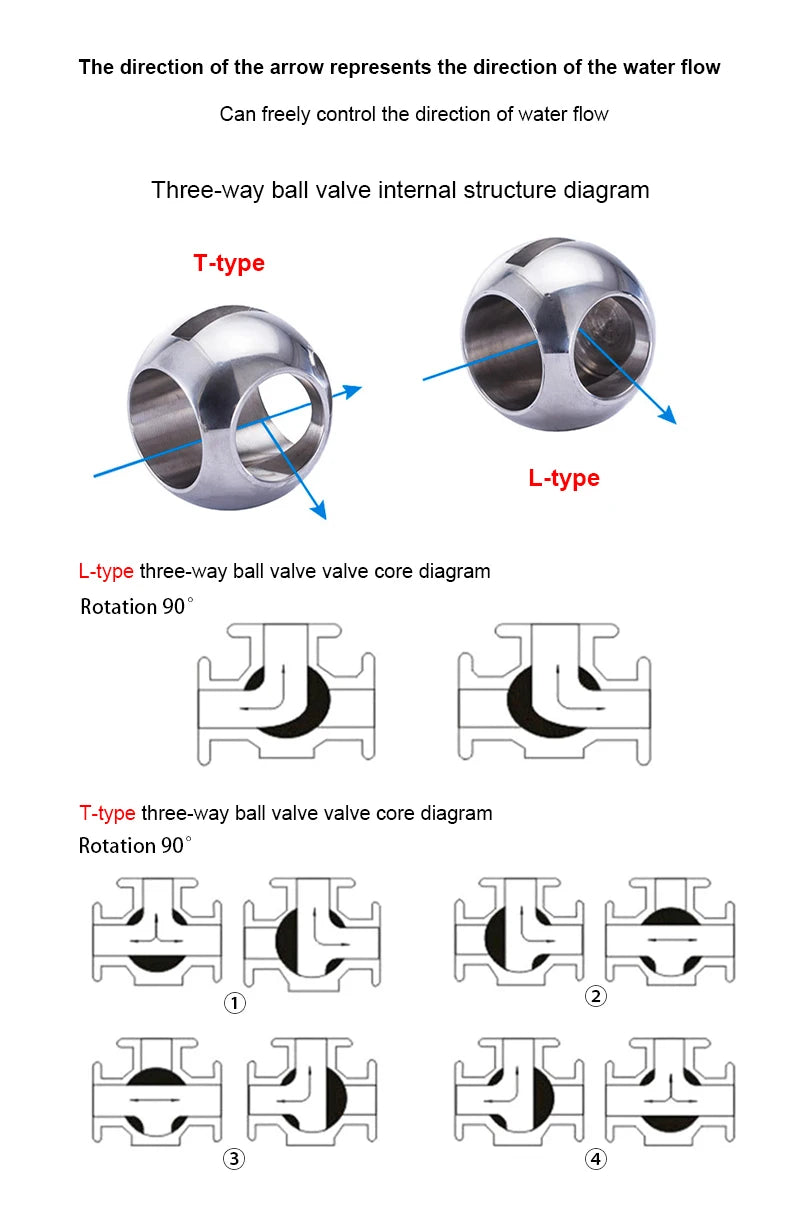

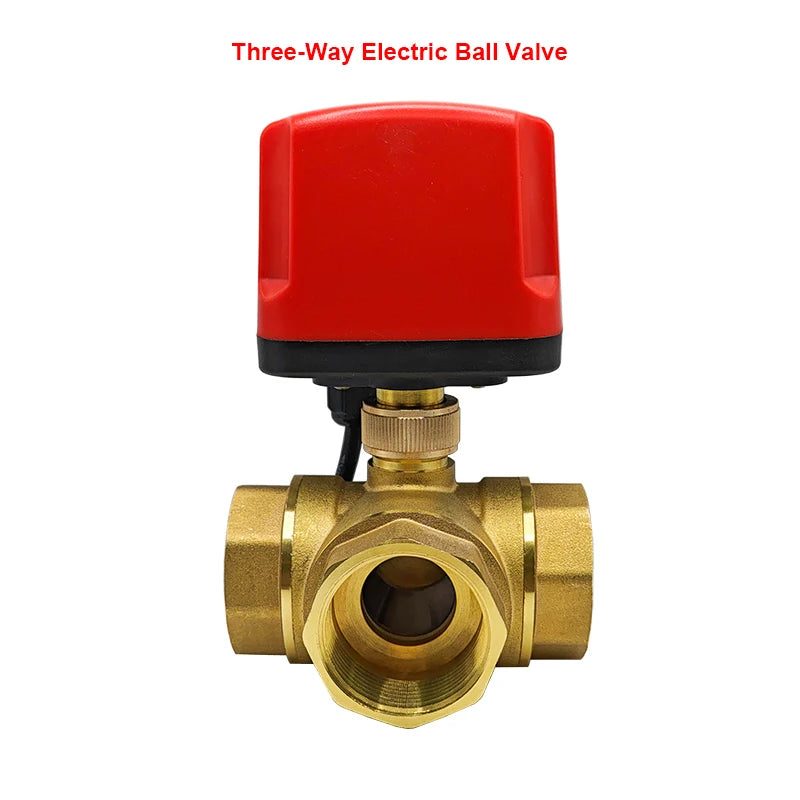

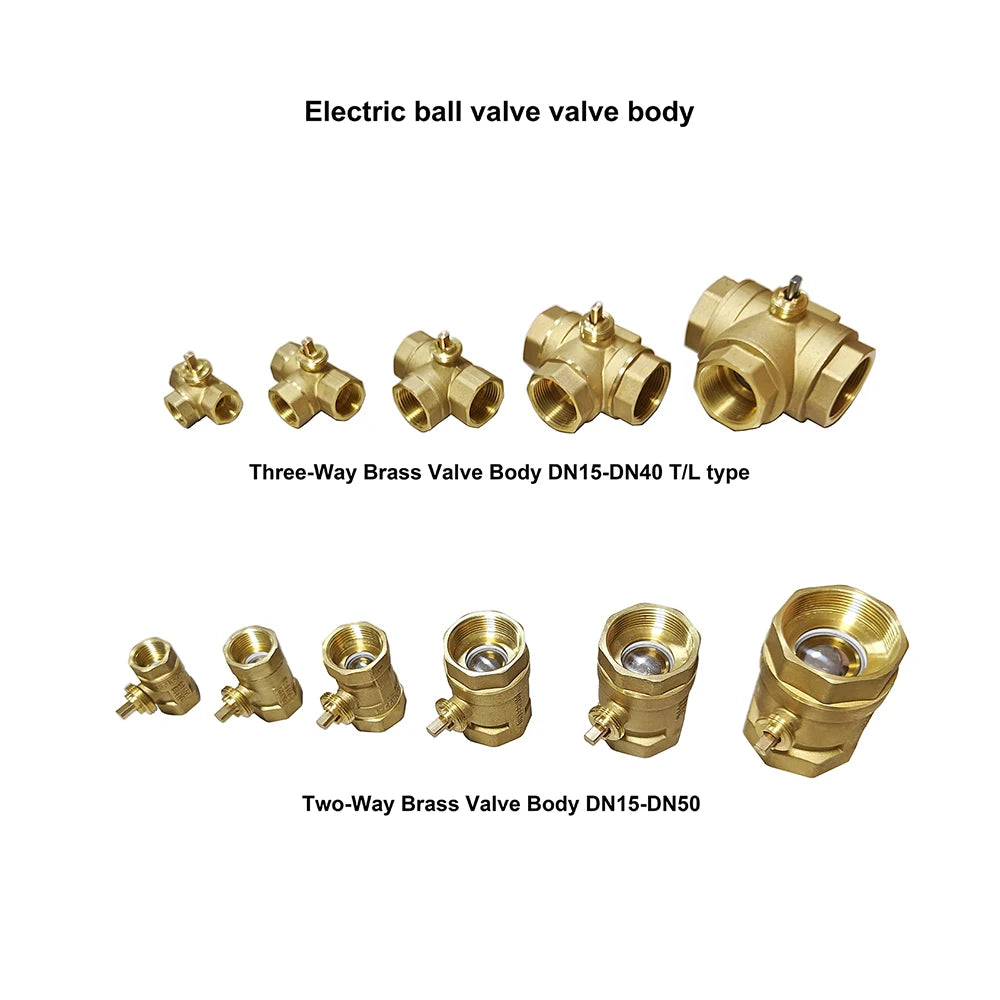

Way: Two way/Three way (three way is T type)
Driving voltage: AC220V, DC24V, DC12V, 50/60Hz
Power: 6W (only when the valve is opened and closed)

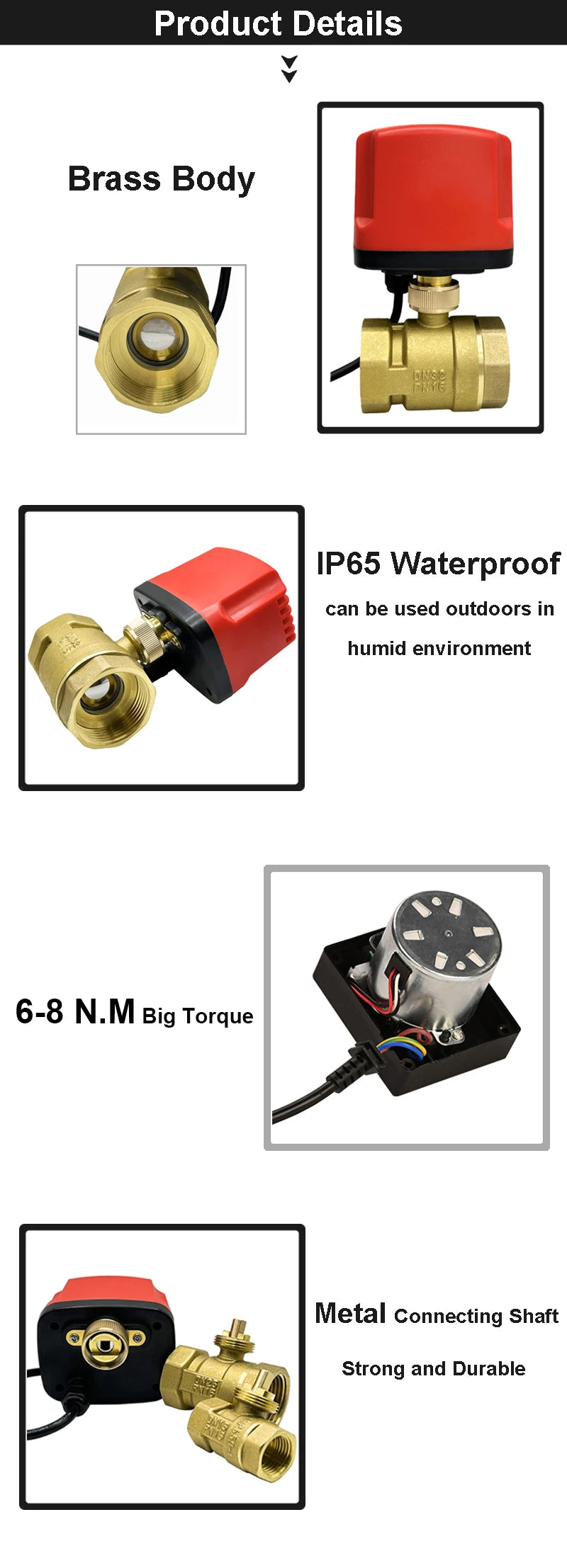

Waterproof level: IP65
Drive torque: AC220V 8 NM, DC12/24V 6 NM
Running Time: 5-15s
Nominal pressure: 1.6 MPa
Applicable medium temperature: 0-95℃
Applicable ambient temperature: 0-65℃

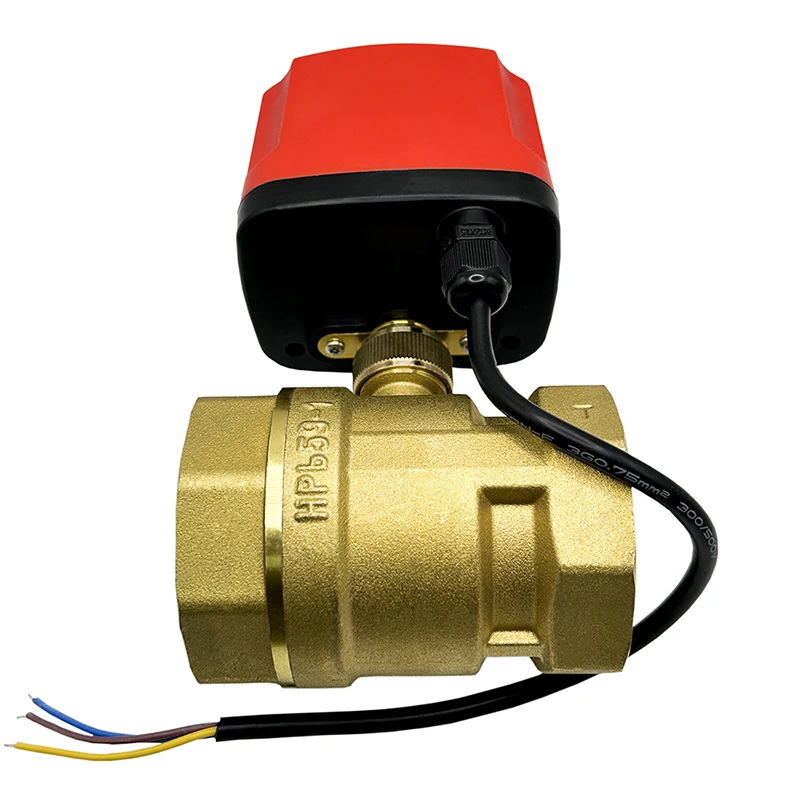

Lead length: 30 CM
Connection method: G internal thread
Notice:
1.If you need an L-type three-way valve, please contact customer service separately!!!
2. The more you order, the more offers, please contact us
3. Package list: Valve*1

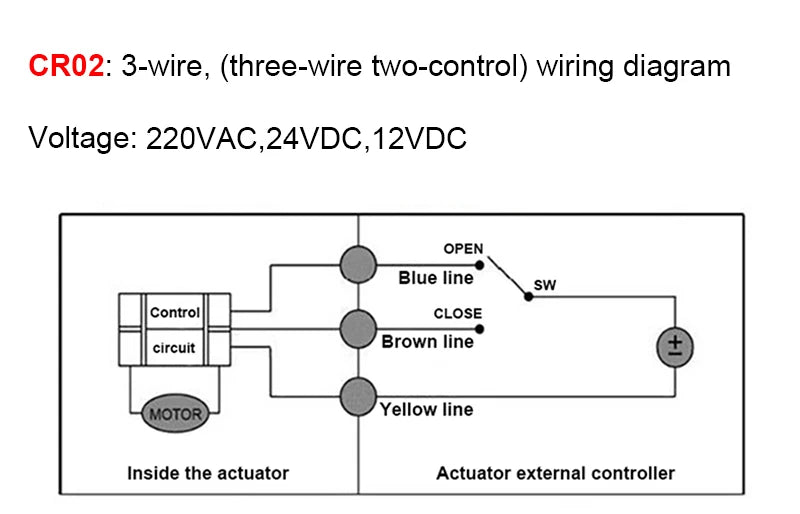

Wiring Control
1. SW is connected to the OPEN, the valve is open, internal automatic power off after in place, the valve remains fully open position.
2. SW is connected to the CLOSE, the valve is closed, internal automatic power off after in place, the valve remains fully closed position.

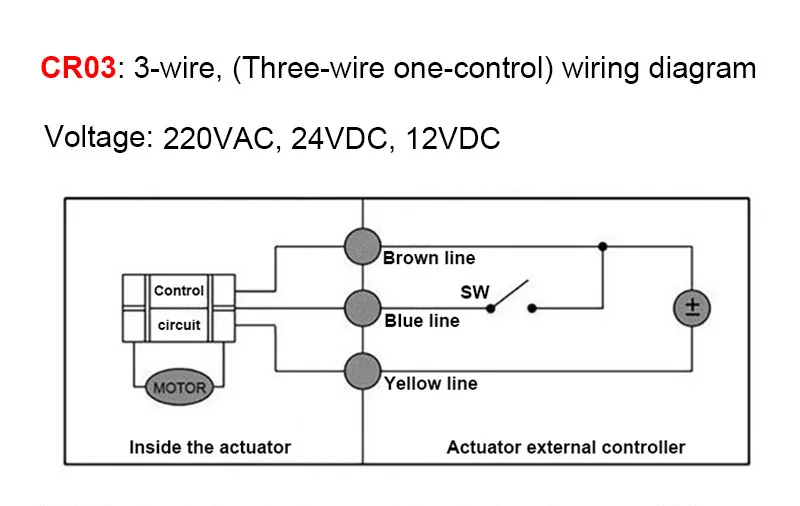

1. SW is closed, the valve is open, internal automatic power off afterin place, the valve remains fully open position.
2. SW is disconnected, the valve is closed, internal automatic power off after in place, the valve remains fully closed position.

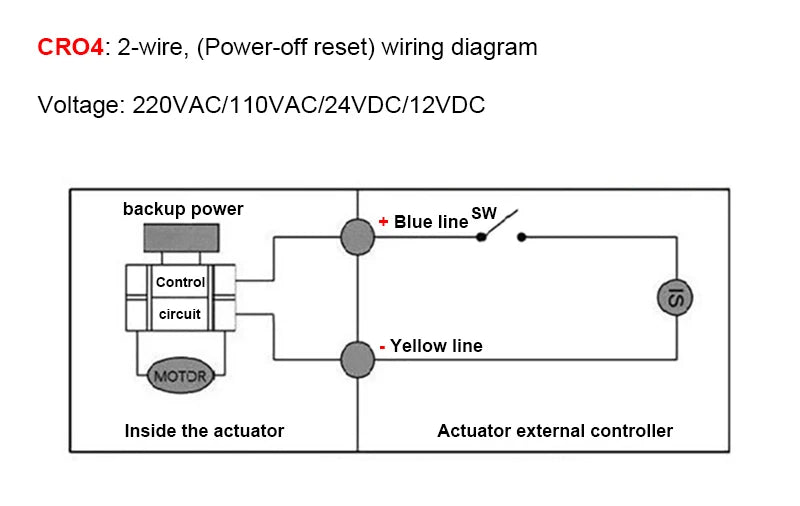

1.When the SW is closed, the valve opens/closes; After the position isin place, the internal power is automatically cut off, the valve remains on/off and the backup power is charged.
2.When the SW is disconnected, the valve is closed/opened; After the position is in place, the internal power is automatically cut off, the valveremains closed/open.
