AIR GRILL DIFFUSER

General product description:

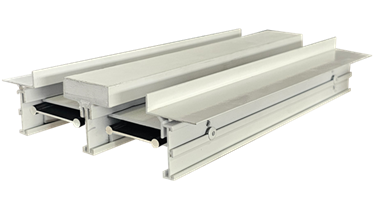

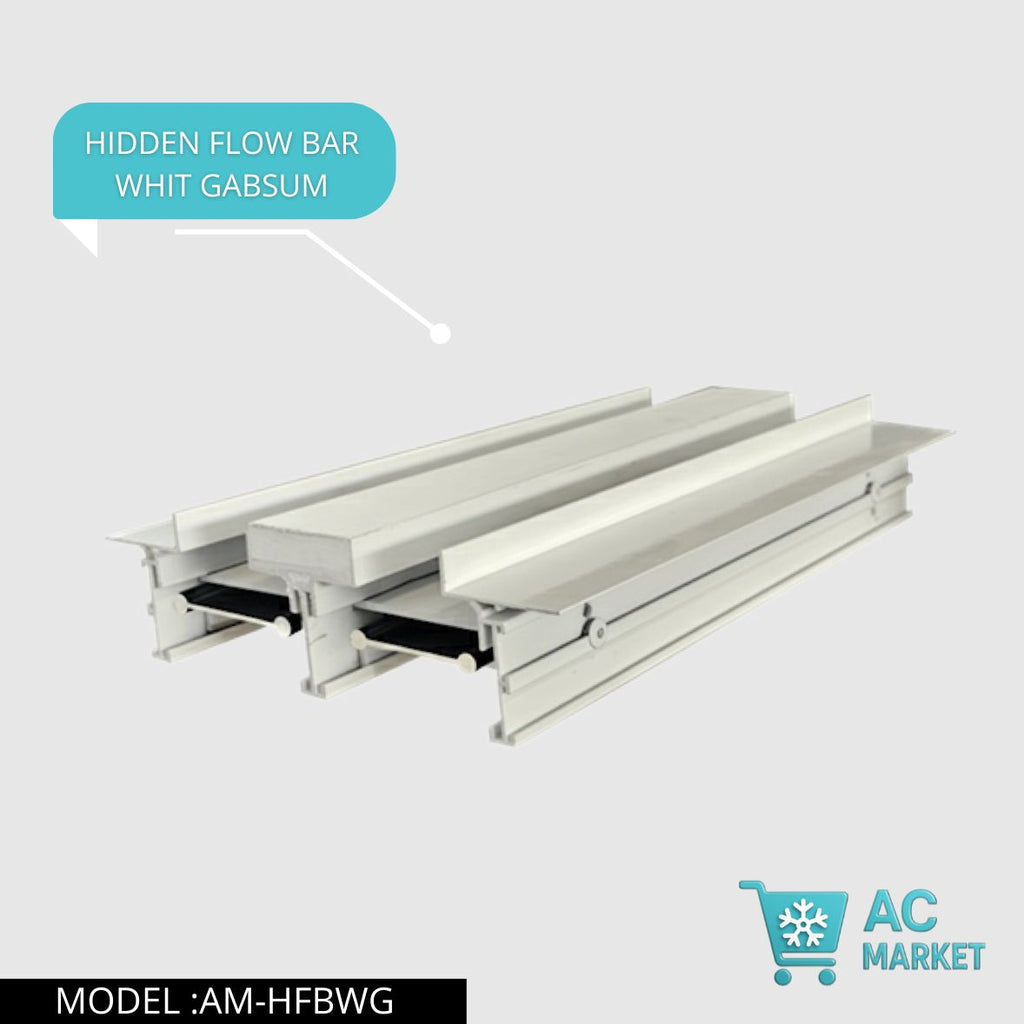

This concealed linear CONCEALED FLOW BAR DIFFUSER redefines the meaning of beauty in the world of air vents. .
It's not just an air conditioning unit… it's a sophisticated architectural detail that flows seamlessly into the gypsum ceiling, appearing only as a precise and elegant line, adding a modern architectural touch that harmonizes with any luxurious design. . This model, with its distinctive black finish and all-aluminum construction, offers an unparalleled level of precision and aerodynamics, with quiet and balanced aerodynamic performance that distributes air smoothly and comfortably without any noise or disturbance. .

This is the flowbar air outlet.  One of the best modern air distribution solutions in air conditioning systems.

It features a streamlined geometric design with a single linear opening. (Single Slot) Hidden within the plasterwork, giving it a modern look.

 It complements all types of high-end interiors, and features a central cover that prevents vertical drafts, making it an excellent choice for vertical grilles.

This model is designed for installation in gypsum ceilings, provides uniform airflow with a very low noise level, and is an ideal choice for villas, hotels, high-end offices, and architectural projects that require luxurious and high-performance ventilation solutions. .

Key features:

• Modern linear design suitable for all types of interior decorations .
• Frameless hidden in the decor  HIDDEN
• Smooth and quiet air distribution without noise .
• The airflow downwards is very smooth thanks to the middle blade.
• Creates smooth air distribution Uniform airflow without direct hits on people .
• Two-way airflow control
• Suitable for installation in gypsum ceilings .
• Available in white and black.
• Made of aluminum  Rust-resistant
• Easy to install, clean and maintain .

Technical specifications  :

• Shape: Rectangle  hidden  HIDDEN
• Color: Black and white
• Made of High -quality aluminum (Extruded Aluminum)
• It can be used For supply and return
• air flow rate From 100 to 250 CFM per meter according to the required air speed .
• Noise level Low Noise ≤ 25 dB
• Operating pressure 0 – 30 Pa
• air direction Horizontal Air Supply
• Suitable for both hot and cold air conditioning .
• Available in different colors
• Paint type:  Powder Coat Scratch Resistant RAL 9016-RAL9005
• Internal code The black blade design of the opening gives it a sleek look. .
• Thickness: STANDARD









Product dimensions:



Uses:

• residential villas
• Hospitality and hotel buildings
• Malls and shops
• Theaters and halls
• Offices and administrative headquarters
• Projects High-end Interior Design

Technical details:







Other options:

• Plenum Box can be added  upon request
• Volume Control Damper can be added upon request .

·         Different colors can be ordered

·         Multiple sizes can be ordered

·         Special rates are available for large projects.

·         Special rates are available for businesses and traders.

• Plenum Box can be added  upon request
• It can be added Volume Control Damper upon request.
• Different product options and methods, as well as additional details, can be requested.





Installation method:



Tools and materials required:

• The Flowbar Grill.
•  Feeding box (plenum box) of it (in the supply) .
• Suitable screws and fasteners .
• Adhesive tape (for finishing work) .
• paste ( In the case of hidden finishing) (seamless).
• Measuring and cutting tools (scalpel, saw) .
• Screwdriver or electric drill .
• Sealant material (optional to prevent air leakage) .



Installation steps:

·         Determine the installation location according to the air conditioning plans.

·         Install the Plenum box (Plenum Box) above the plaster cast opening Using suspension poles Threaded Rods

• Connect the duct (DUCT) with a Plenum Pex Pal FLIEXEBLE DUCT.

• Install the plaster  By a gypsum specialist, with the location of the grill opening identified.
• Cut an opening in the gypsum ceiling with the same dimensions as the internal grille.  (inter Dimensions).
• Make sure the opening is perfectly straight and parallel to the plaster path. .

·         Prepare the grill for installation. .

·         Install the grill and secure it with the rear clips and tighten it with the long screws for securing grilles.

• Tighten the side screws to pull the grille towards the plenum and secure it firmly. .
• After completing all the installation steps for the entire system, turn on the air conditioner.
• Select the air and adjust the flow direction.
• Measure the air speed in FPM airflow  CFM
• Measure the air pressure  STATIC PRESSURE

• Adjust the airflow direction via the inner louver .
