Aluminum four-way air diffuser – Central air conditioning diffuser – High-quality ceiling air vents

General product description:

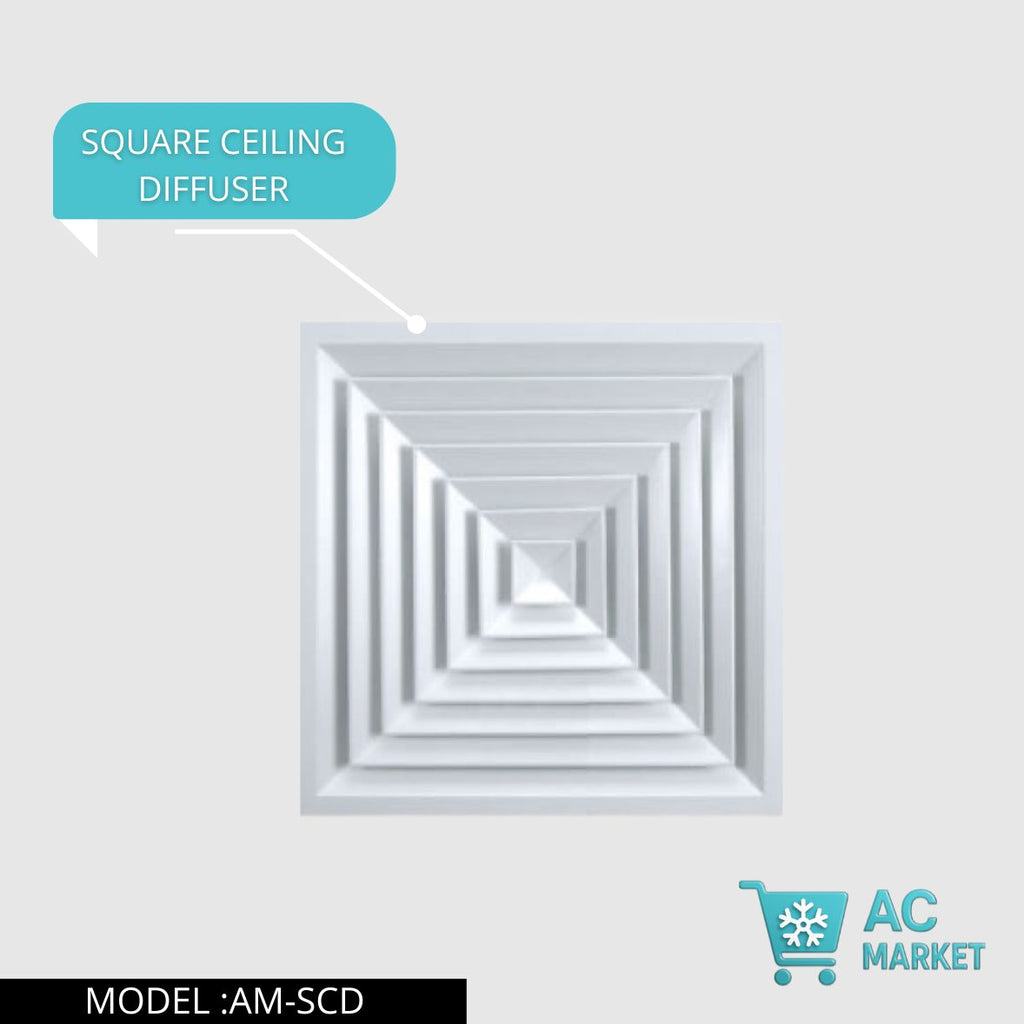

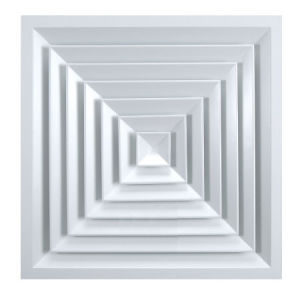

The square, four-way ceiling diffuser is one of the most commonly used air outlets in central air conditioning systems, providing ideal air distribution in all four directions with low noise levels and suitable pressure loss. .
Made entirely of aluminum With a high-quality thermal powder coating, giving it a sleek appearance and excellent durability for long-lasting use. .

Key features:

• Product type : Square 4-way ceiling diffuser.

·         Excellent aerodynamic performance with efficient air intake and expulsion. .

• The air distribution is horizontal.
• The airflow is very smooth thanks to the four-way distribution.
• Suitable for installation in gypsum and suspended ceilings .
• Available in white and black.
• Made of rust-resistant aluminum
• Lightweight .
• Easy to install, disassemble, clean, and maintain .
• Possibility of installing a damper with air volume control.

Technical specifications  :

• Shape: Square
• Color: Black and white
• Made of High -quality aluminum(Extruded Aluminum)
• It can be used For supply and return
• air flow rate According to the size of the grill
• The frame can be disassembled and detached. From the heart.
• air direction : DOWN THROW
• Suitable for both hot and cold air conditioning .
• Available in different colors upon request
• Paint type:  Powder Coat Scratch Resistant RAL 9016-RAL9005
• Thickness: Frame thickness 5 mm, blade thickness 0.8 mm  millimeter

Product dimensions:



 Uses:

• Commercial and industrial buildings
• Hospitality and hotel buildings
• Halls and lounges
• shops
• Restaurants and cafes
• residential buildings

Technical details:





 Aerodynamic performance(Air Performance)

  (1 size 150×150)mm

2) Size 225×225mm



3) Size 300×300mm

4) Size 375×375mm



5) Size 450×450mm





Other options:

• Plenum Box can be added  upon request
• Volume Control Damper can be added upon request .

·         Different colors can be ordered

·         Multiple sizes can be ordered

·         Special rates are available for large projects.

·         Special rates are available for businesses and traders.

• Different product options and methods, as well as additional details, can be requested.





Installation method:



Tools and materials required:

• Diffuser grill.
•  Feeding box (plenum box) of it (in the supply) .
• Suitable screws and fasteners .
• Adhesive tape (for finishing work) .
• paste ( In the case of hidden finishing) (seamless).
• Measuring and cutting tools (scalpel, saw) .
• Screwdriver or electric drill .
• Sealant material (optional to prevent air leakage) .



Installation steps:

·         Determine the installation location according to the air conditioning plans.

·         Install the Plenum box (Plenum Box) above the plaster cast opening Using suspension poles Threaded Rods

• Connect the duct (DUCT) with a Plenum Pex Pal FLIEXEBLE DUCT.

• Install the plaster  By a gypsum specialist, with the location of the grill opening identified.
• Cut an opening in the gypsum ceiling with the same dimensions as the internal grille.  (inter Dimensions).
• Make sure the opening is perfectly straight and parallel to the plaster path. .

·         Prepare the grill for installation. .

·         Install the grill and secure it with the rear clips and tighten it with the long screws for securing grilles.

• Tighten the side screws to pull the grille towards the plenum and secure it firmly. .
• After completing all the installation steps for the entire system, turn on the air conditioner.
• Select the air and adjust the flow direction.
• Measure the air speed in FPM airflow  CFM
• Measure the air pressure  STATIC PRESSURE

• Adjust the airflow direction via the inner louver .
