Description
General product description:

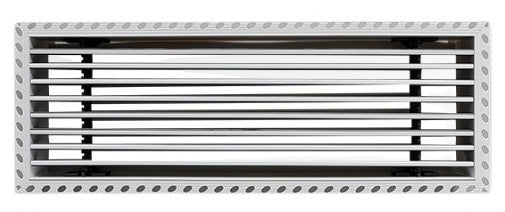

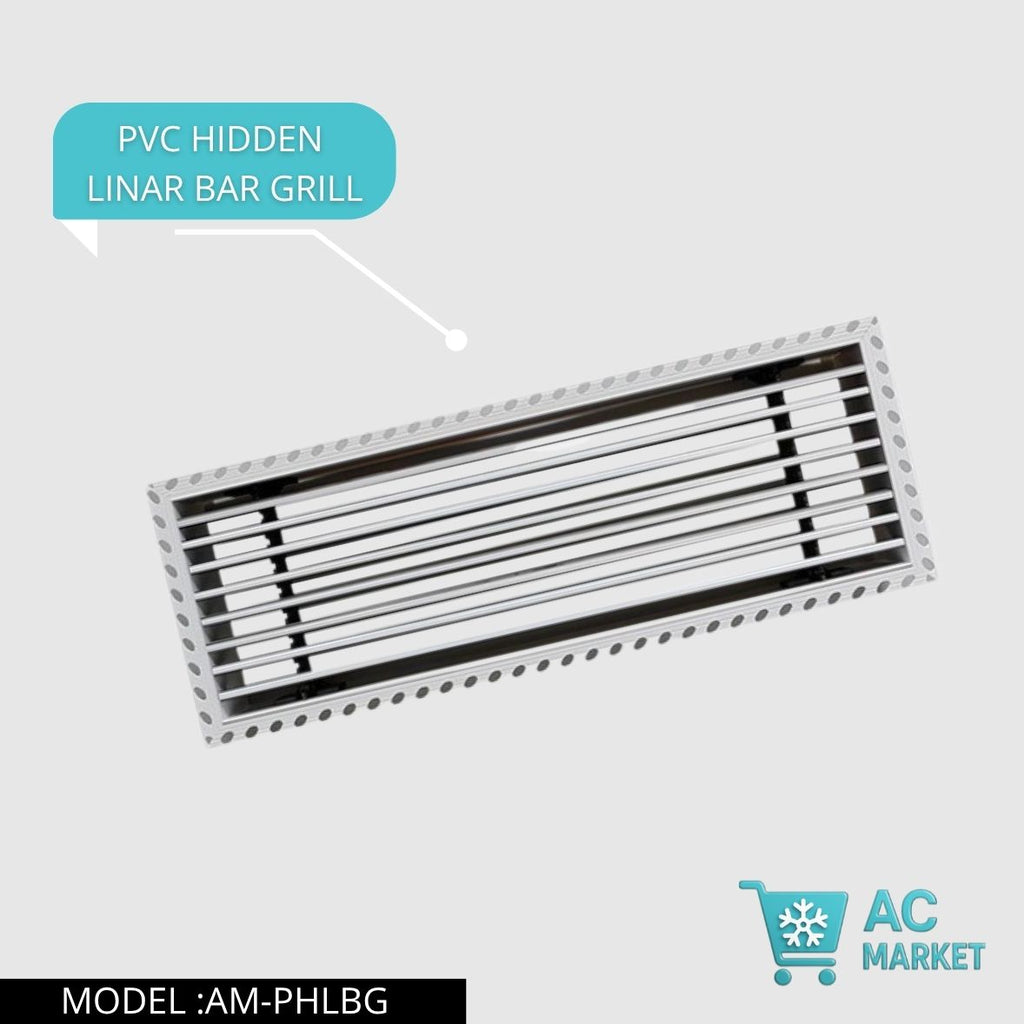

The linear bar grill (Linear Bar Grill) One of the most common air outlets in air conditioning systems thanks to its practical design and high airflow management capabilities. This grille features parallel longitudinal lines that create a sleek geometric shape, and it can also be used as a pull-out vent. (Return) or air thrust (Supply) According to the system's needs HVAC. It is widely used in commercial and residential projects thanks to its ability to efficiently pass large quantities of air. .
The grill is made of high-quality aluminum with a surrounding outer frame, giving it excellent rigidity and long-lasting durability, in addition to a modern look that suits most interior designs for residential and commercial projects. .
For Linear Bar Grill It is one of the best practical and stylish options for air conditioning systems, combining beautiful design, durability, and high air management capabilities, making it an ideal choice for various projects. .
Key features:
- Modern linear design suitable for all types of interior decorations .
- Smooth and quiet air distribution without noise .
- The airflow is very smooth thanks to the large openings.
- Creates smooth air distribution Uniform airflow without direct hits on people .
- Air can be directed through the rear blades, left and right.
- Suitable for installation in gypsum ceilings .
- Available in white and black.
- Lightweight and rust-resistant .
- Easy to install, disassemble, clean, and maintain .
Technical specifications :
- Shape: Rectangle
- Color: Black and white
- Made of High -quality aluminum (Extruded Aluminum)
- It can be used For supply and return
- air flow rate Depending on the grill width and required air speed .
- Noise level Low Noise ≤ 25 dB
- Operating pressure 0 – 30 Pa
- air direction : SIDE THROW
- Suitable for both hot and cold air conditioning .
- Available in different colors
- Paint type: Powder Coat Scratch Resistant RAL 9016-RAL9005
- Internal blade: MOVABLE Blade
- Thickness: STANDARD
Product dimensions:
|
The entity |
the details |
Measurement MM |
|
|
F |
Face size |
FACE SIZE |
70 |
|
N |
Neck rest |
NICK SIZE |
40 |
|
D |
Depth |
DEPTH |
40 |
|
O |
Measuring the opening |
OPENING |
25 |
|
L |
height |
LENGTH |
All sizes are available (made to order) |
Uses:
- residential villas
- Hospitality and hotel buildings
- Malls and shops
- Theaters and halls
- Offices and administrative headquarters
- Projects High-end Interior Design
Technical details:
|
Item |
the details |
|
Type |
Lener Bar Grill LINEAR BAR GRILL |
|
Number of openings |
Multi-hole mesh |
|
Brand |
LP |
|
The structure |
All parts of the grill are made of aluminum. |
|
Aluminum thickness |
5 mm per frame |
|
front size |
From 50-400 mm |
|
Back size |
From 30-400 mm |
|
Depth |
40mm |
|
height |
Customized |
|
the color |
white color RAL 9016black color RAL 9005 |
|
Paint type |
High-quality powder coating |
|
Internal blades |
The internal code is movable. |
|
Air direction control |
Yes, code routing is possible. Interior |
|
Available types |
SUPPLY & RETURN |
|
air flow rate |
100 to 250 CFM |
|
Noise level |
Low Noise ≤ 25 dB |
|
Noise standard |
Noise Criteria: NC 15 – NC 30 |
|
Operating pressure |
Pa Operating Pressure: 0 - 30 Pa |
|
Loss of blood pressure |
Static Pressure Drop: 0 - 30 Pa |
|
air speed |
Air speed: 100-300 fpm |
|
Country of origin |
United Arab Emirates |
|
Damber |
Dump truck installation possibility |
Other options:
- Plenum Box can be added upon request
- Volume Control Damper can be added upon request .
· Different colors can be ordered
· Multiple sizes can be ordered
· Special rates are available for large projects.
· Special rates are available for businesses and traders.
- Plenum Box can be added upon request
- It can be added Volume Control Damper upon request.
- Different product options and methods, as well as additional details, can be requested.
Installation method:
Tools and materials required:
- Linear grill bar grill.
- Feeding box (plenum box) of it (in the supply) .
- Suitable screws and fasteners .
- Adhesive tape (for finishing work) .
- paste ( In the case of hidden finishing) (seamless).
- Measuring and cutting tools (scalpel, saw) .
- Screwdriver or electric drill .
- Sealant material (optional to prevent air leakage) .
Installation steps:
· Determine the installation location according to the air conditioning plans.
· Install the Plenum box (Plenum Box) above the plaster cast opening Using suspension poles Threaded Rods
- Connect the duct (DUCT) with Plenum Pex Pal FLIEXEBLE DUCT.
- Install the plaster By a gypsum specialist, with the location of the grill opening identified.
- Cut an opening in the gypsum ceiling with the same dimensions as the internal grille. (inter Dimensions).
- Make sure the opening is perfectly straight and parallel to the plaster path. .
· Prepare the grill for installation. .
· Install the grill and secure it with the rear clips and tighten it with the long screws for securing grilles.
- Tighten the side screws to pull the grille towards the plenum and secure it firmly. .
- After completing all the installation steps for the entire system, turn on the air conditioner.
- Select the air and adjust the flow direction.
- Measure the air speed in FPM airflow CFM
- Measure the air pressure STATIC PRESSURE
- Adjust the airflow direction via the inner louver .
