General product description:

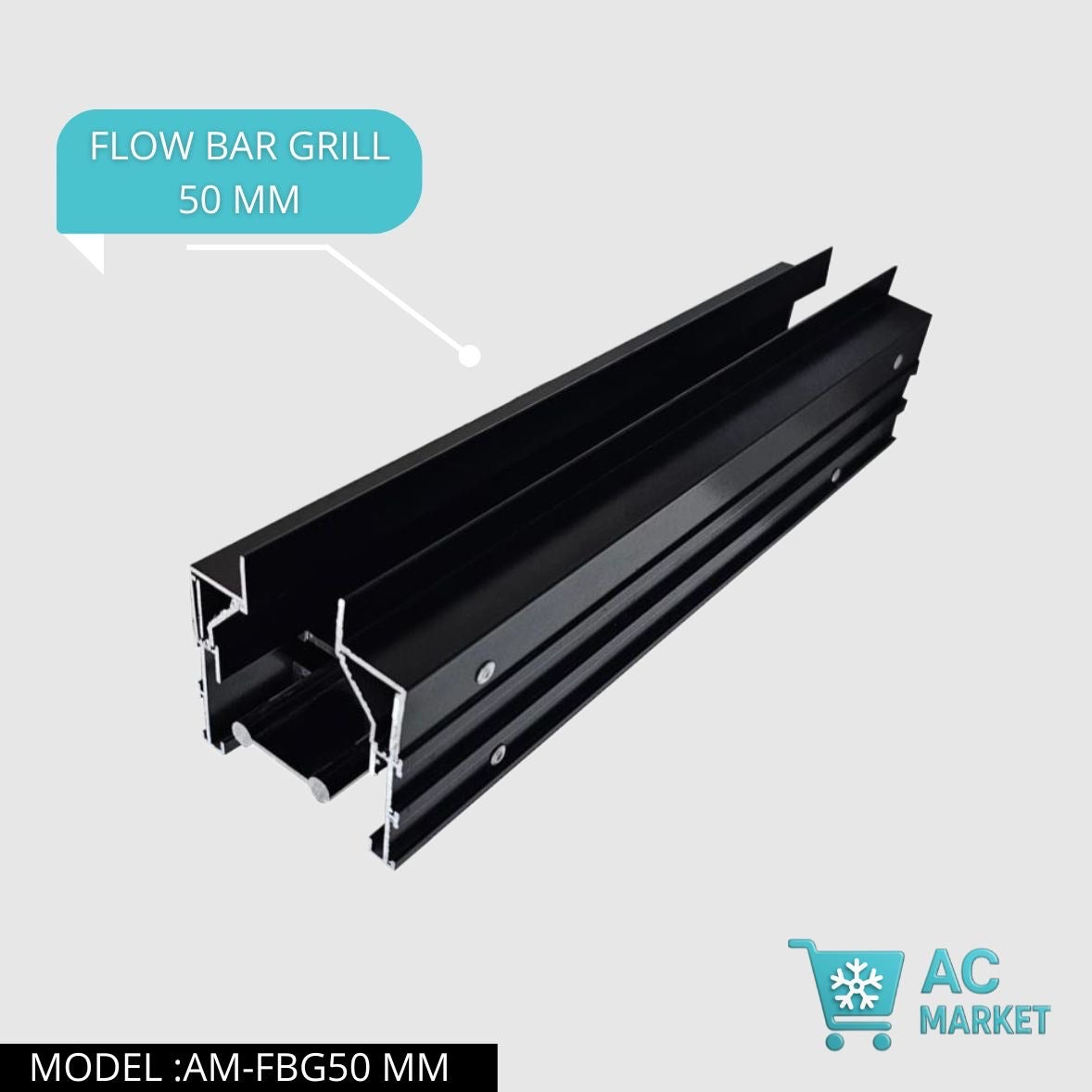

This is the flowbar air outlet. (Slot Flow Bar Diffuser) One of the best modern air distribution solutions in air conditioning systems.
It features a streamlined geometric design with a single linear opening. (Single Slot) and a visible integrated frame This gives it a modern look.
It complements all types of high-end interiors, and features a central cover that prevents vertical drafts, making it an excellent choice for vertical grilles.
This model is designed for installation in gypsum ceilings, provides uniform airflow with a very low noise level, and is an ideal choice for villas, hotels, high-end offices, and architectural projects that require luxurious and high-performance ventilation solutions. .
Key features:
- Modern linear design suitable for all types of interior decorations .
- Smooth and quiet air distribution without noise .
- The airflow downwards is very smooth thanks to the middle blade.
- Creates smooth air distribution Uniform airflow without direct hits on people .
- Two-way airflow control
- Suitable for installation in gypsum ceilings .
- Available in white and black.
- Lightweight and rust-resistant .
- Easy to install, disassemble, clean, and maintain .
Technical specifications :
- Shape: Rectangle
- Color: Black and white
- Made of High -quality aluminum (Extruded Aluminum)
- It can be used For supply and return
- air flow rate From 100 to 250 CFM per meter according to the required air speed .
- Noise level Low Noise ≤ 25 dB
- Operating pressure 0 – 30 Pa
- air direction Horizontal Air Supply
- Suitable for both hot and cold air conditioning .
- Available in different colors
- Paint type: Powder Coat Scratch Resistant RAL 9016-RAL9005
- Internal code The black blade design of the opening gives it a sleek look. .
- Thickness: STANDARD
Product dimensions:
|
The entity |
the details |
Measurement MM |
|
|
F |
Face size |
FACE SIZE |
70 |
|
N |
Neck rest |
NICK SIZE |
40 |
|
D |
Depth |
DEPTH |
40 |
|
O |
Measuring the opening |
OPENING |
25 |
|
L |
height |
LENGTH |
All sizes are available (made to order) |
Uses:
- residential villas
- Hospitality and hotel buildings
- Malls and shops
- Theaters and halls
- Offices and administrative headquarters
- Projects High-end Interior Design
Technical details:
|
Item |
the details |
|
Type |
1 Slot Diffuser 1 SLOT GRILL DIFFUSER |
|
Number of openings |
1 slot |
|
Brand |
LP |
|
The structure |
All parts of the grill are made of aluminum. |
|
Aluminum thickness |
5 mm per frame |
|
front size |
50 mm |
|
Back size |
35mm |
|
hole size |
25mm |
|
height |
Made to order |
|
the color |
white color RAL 9016black color RAL 9005 |
|
Paint type |
High-quality powder coating |
|
Internal code |
Internal code available |
|
Air direction control |
Yes, code routing is possible. |
|
Available types |
SUPPLY & RETURN |
|
air flow rate |
100 to 250 CFM |
|
Noise level |
Low Noise ≤ 25 dB |
|
Operating pressure |
0 – 30 Pa |
|
|
|
|
Country of origin |
United Arab Emirates |
Other options:
- Plenum Box can be added upon request
- Volume Control Damper can be added upon request .
· Different colors can be ordered
· Multiple sizes can be ordered
· Special rates are available for large projects.
· Special rates are available for businesses and traders.
- Plenum Box can be added upon request
- It can be added Volume Control Damper upon request.
- Different product options and methods, as well as additional details, can be requested.
Installation method:
Tools and materials required:
- Grill slot diffuser.
- Feeding box (plenum box) of it (in the supply) .
- Suitable screws and fasteners .
- Adhesive tape (for finishing work) .
- paste ( In the case of hidden finishing) (seamless).
- Measuring and cutting tools (scalpel, saw) .
- Screwdriver or electric drill .
- Sealant material (optional to prevent air leakage) .
Installation steps:
· Determine the installation location according to the air conditioning plans.
· Install the Plenum box (Plenum Box) above the plaster cast opening Using suspension poles Threaded Rods
- Connect the duct (DUCT) with Plenum Pex Pal FLIEXEBLE DUCT.
- Install the plaster By a gypsum specialist, with the location of the grill opening identified.
- Cut an opening in the gypsum ceiling with the same dimensions as the internal grille. (inter Dimensions).
- Make sure the opening is perfectly straight and parallel to the plaster path. .
· Prepare the grill for installation. .
· Install the grill and secure it with the rear clips and tighten it with the long screws for securing grilles.
- Tighten the side screws to pull the grille towards the plenum and secure it firmly. .
- After completing all the installation steps for the entire system, turn on the air conditioner.
- Select the air and adjust the flow direction.
- Measure the air speed in FPM airflow CFM
- Measure the air pressure STATIC PRESSURE
- Adjust the airflow direction via the inner louver .
