Description
SPECIFICATIONS
Actuator Mode : Without Manual And Instruction
Applicable industry : Environmental protection
Applicable medium : water
Applicable temperature : 0-90°C
Brand Name : xmshxltd
Certification : CE
Choice : Yes
Control mode : Electric control type
Driving mode : Electric drive
Form : Ball valve
High-concerned chemical : None
Is Smart Device : No
Material : Brass
Media : water
Mounting dimension : DN15 DN20 DN25 DN32 DN40 DN50
Origin : Mainland China
Port Size : DN15 DN20 DN25 DN32 DN40 DN50
Power : Solenoid
Pressure : Low Pressure
Standard or Nonstandard : Standard
Structural form : 2way, 3ways
Structure : Ball
Temperature of Media : Normal Temperature
Valve body material : High quality brass
Voltage : AC220V, DC12V-24V
DC12V-24V or AC220V Electric Brass Ball Valve, 3-wire 2-control Electric Ball Valve 2-way, 3-way DN15 DN20 DN25 DN32 DN40 DN50
Description:
• High Pressure Resistance:This brass motorized ball valve is designed to withstand high pressure, ensuring reliable performance and durability in various applications.
• Wide Temperature Range: With a medium temperature range, this valve is suitable for use in environments with a wide range of temperatures, making it versatile and adaptable.
• Three-Wire Electric Actuator:The three-wire electric actuator AC220V provides efficient and effective operation, enhancing the overall performance of the valve.
• Three-Way/Two-Way Functionality:The three-way/two-way functionality of this valve allows for flexible control over the flow of media, making it a valuable addition to any system.
• The maximum working pressure of the ball valve is 1.6MPa and the maximum working temperature is 90 ℃, which is very suitable for high pressure and high temperature projects.
• Simple connection: The ball valve connection is simple, fast and convenient, and it can be restored to the completely closed state after the power failure. Suitable media: Our ball valves can be used in cold water, hot water and 50% concentration solutions.
• Suitable media: Our ball valves can be used in cold water, hot water and 50% concentration solutions.
• Brass body: The valve body is made of brass and is not easily damaged.
• High protection level: The protection level of the ball valve is IP54, dustproof and waterproof, which can be used with confidence.

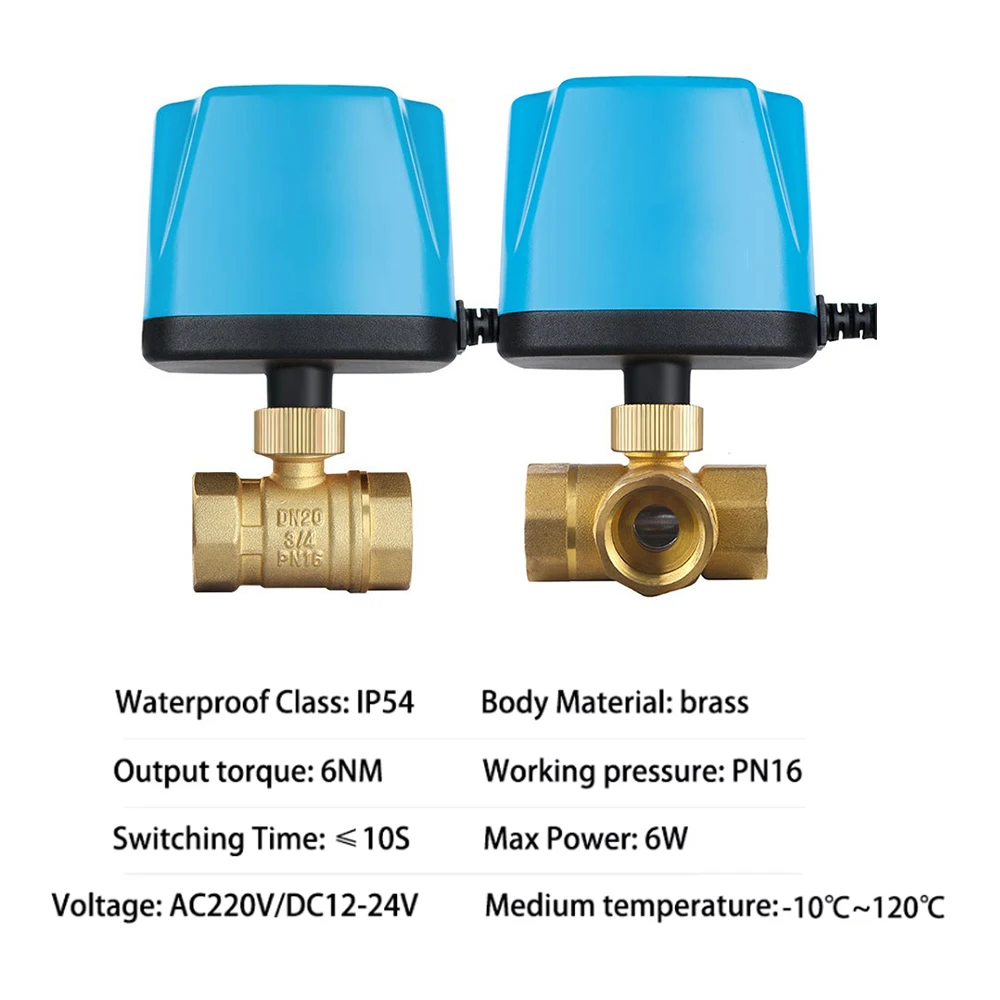

Feature:

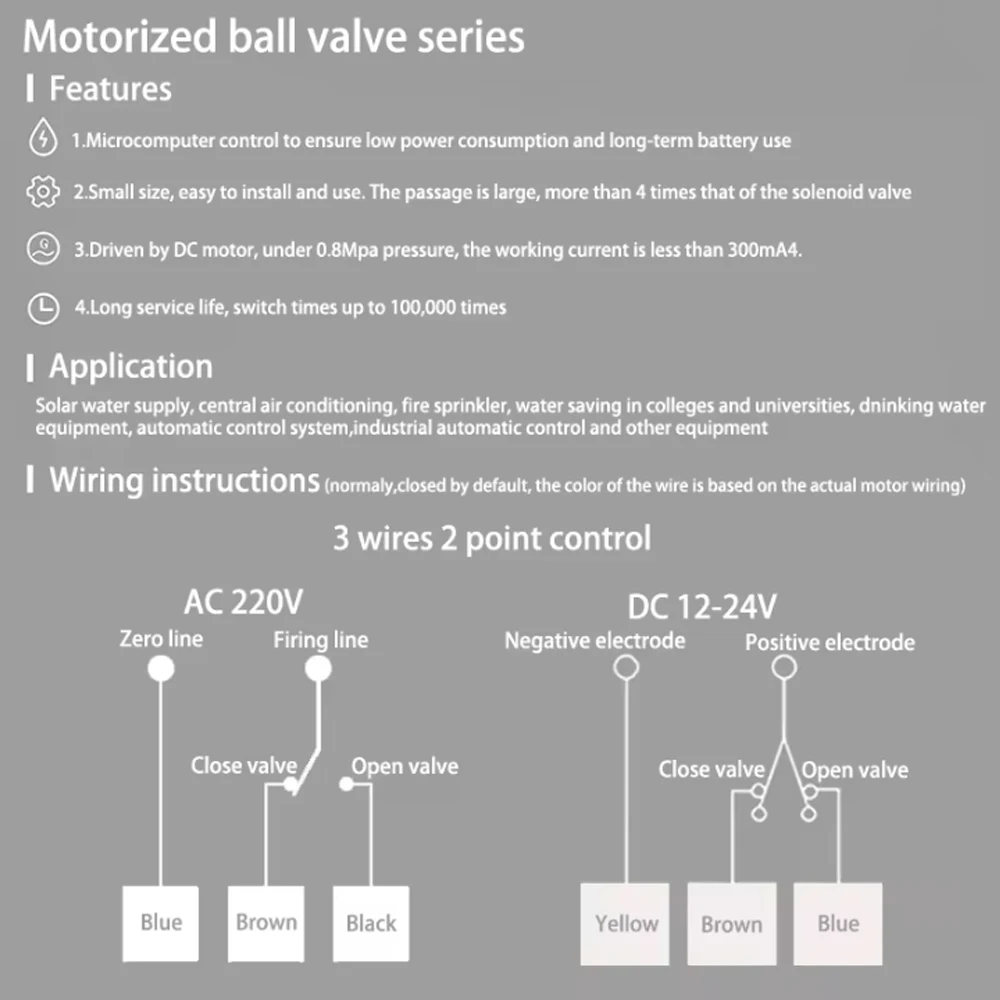

• 3-Wire Two Control
• Way:2Ways /3Ways (3Ways is T type)
• Open/Close Time: 10s
• Maxmum Working Pressure: 1.6 MPa/232psi;
• Medium: Water, oil, non-corrosive non-flammable gas
• Voltage:DC12-24V 50/60 Hz AvailableAC220V 50/60 Hz Available
• Power: Max is 6W
• Torsion: 6N
• Operation: Motor and hand(with manual switch function)
• Life Time: 100,000 times;
• Material: Brass, ABS plastic
• Seal material: EPDM & PTFE;
• Environment Temperature: 0°C~65°C in Celsius;
• Medium Temperature: -10°C~120°C in Celsius
• Protect Class: IP54

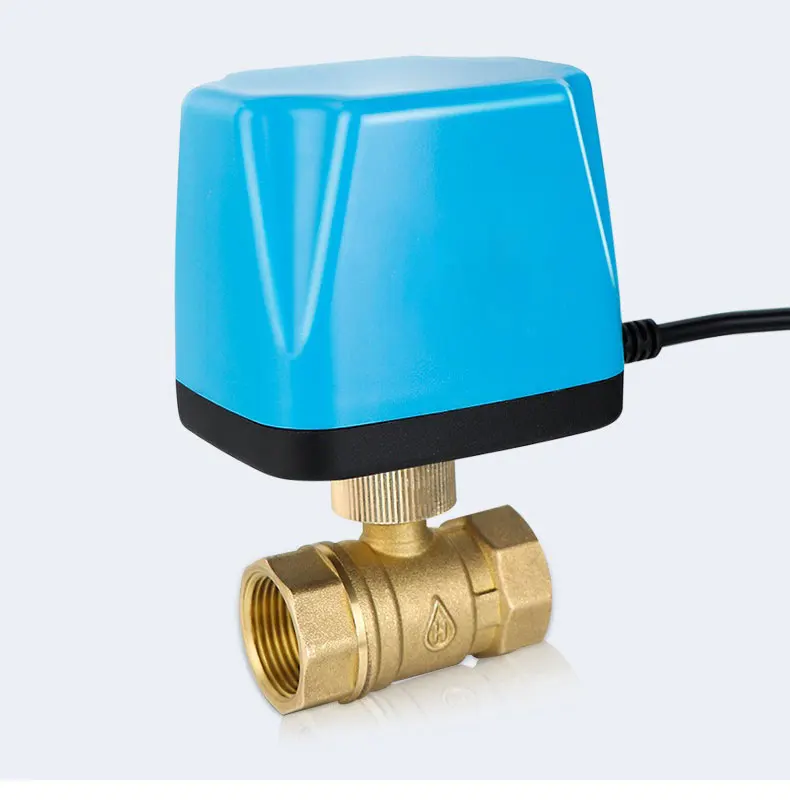

Electric ball valve

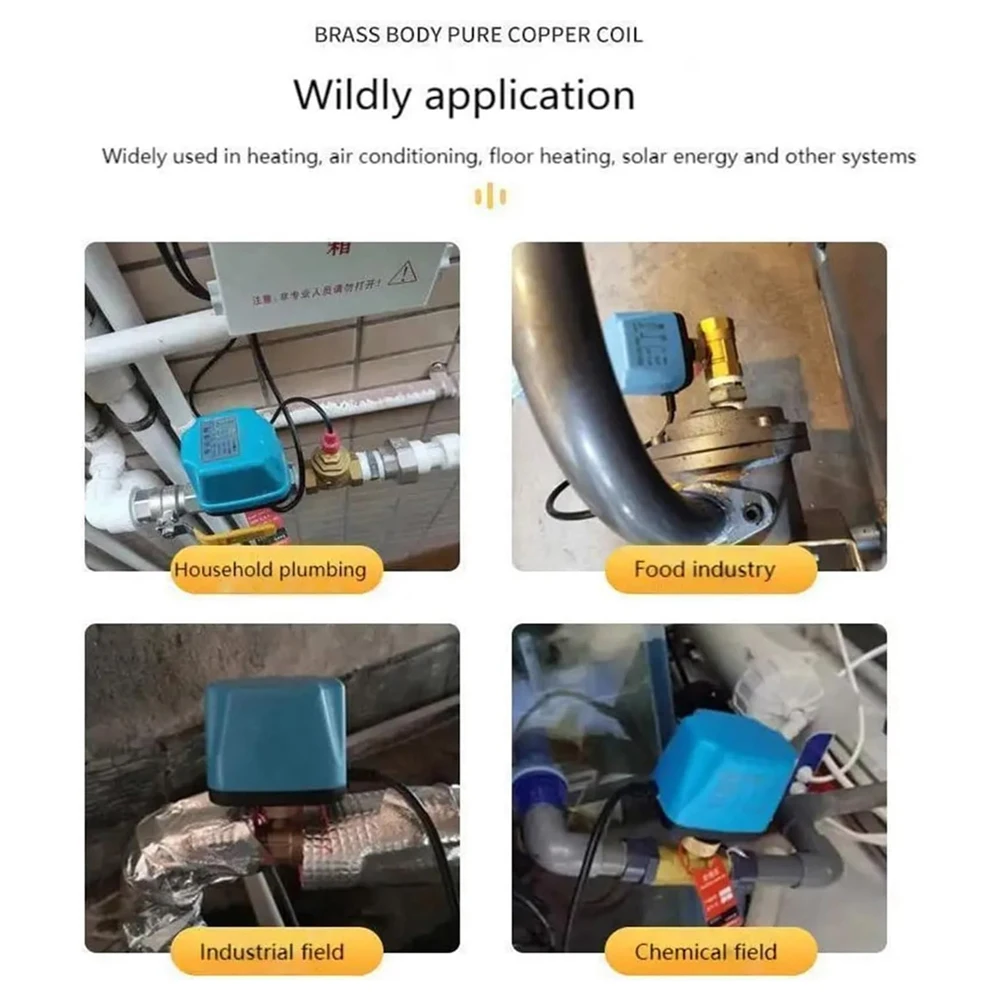

Can be multi-angle installation flexibility
Good dust-proof sealing

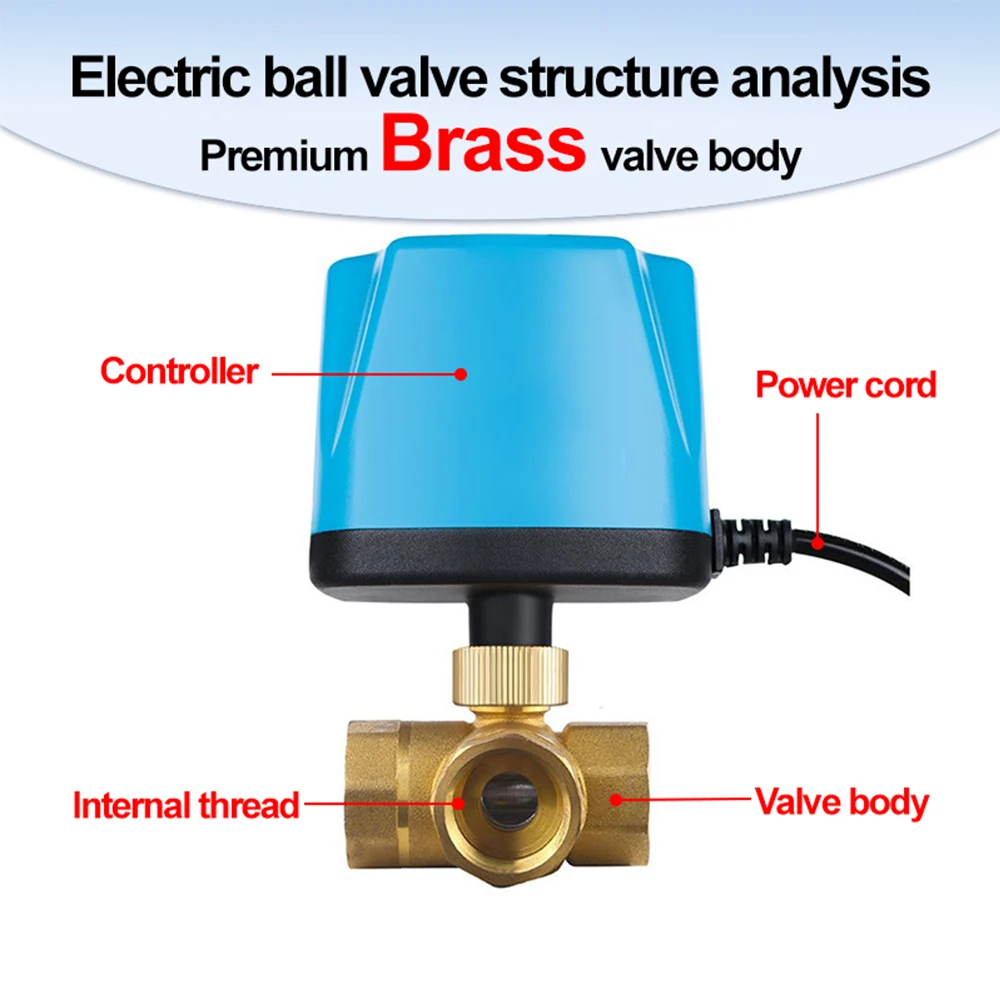

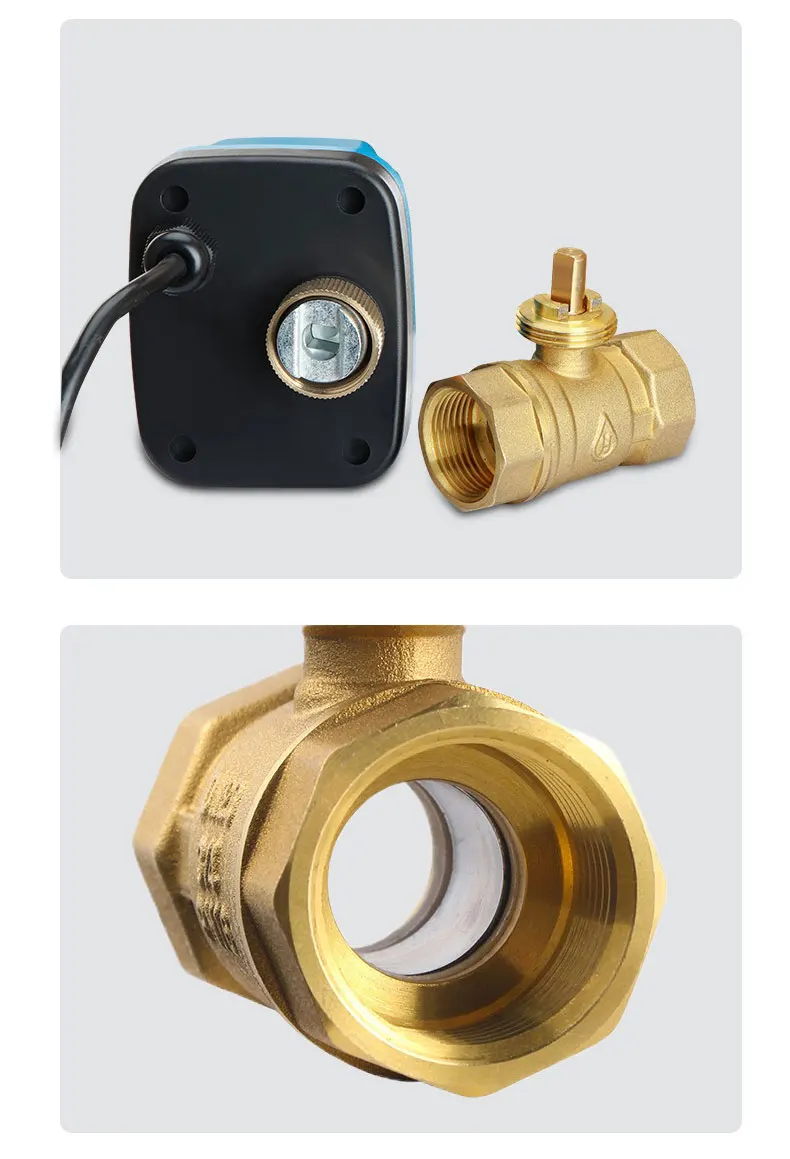

Ball valve structure analysis
The valve body is made of high quality brass for durability

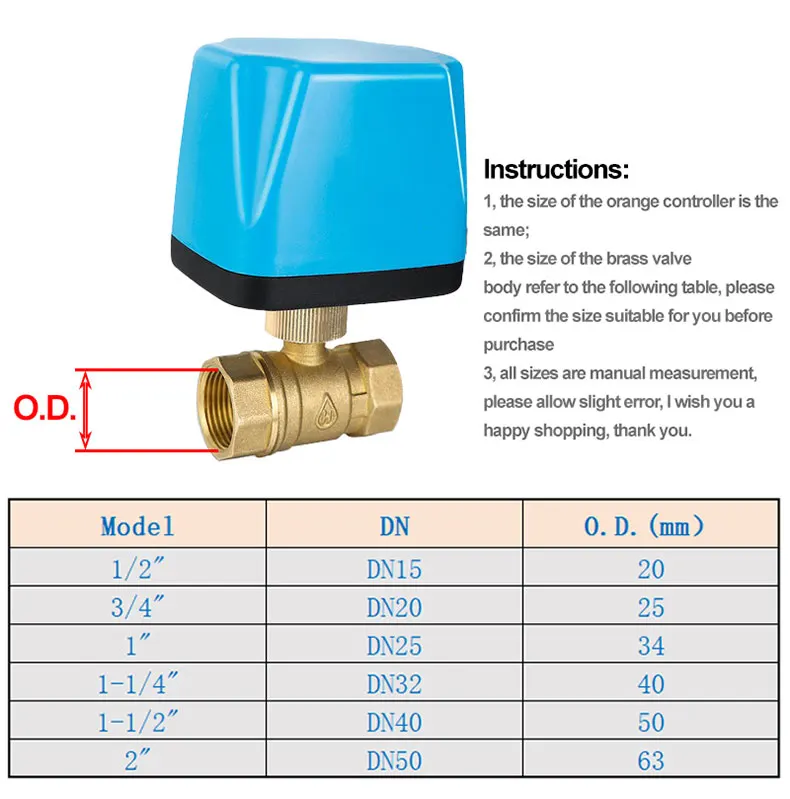

Dimensional specification

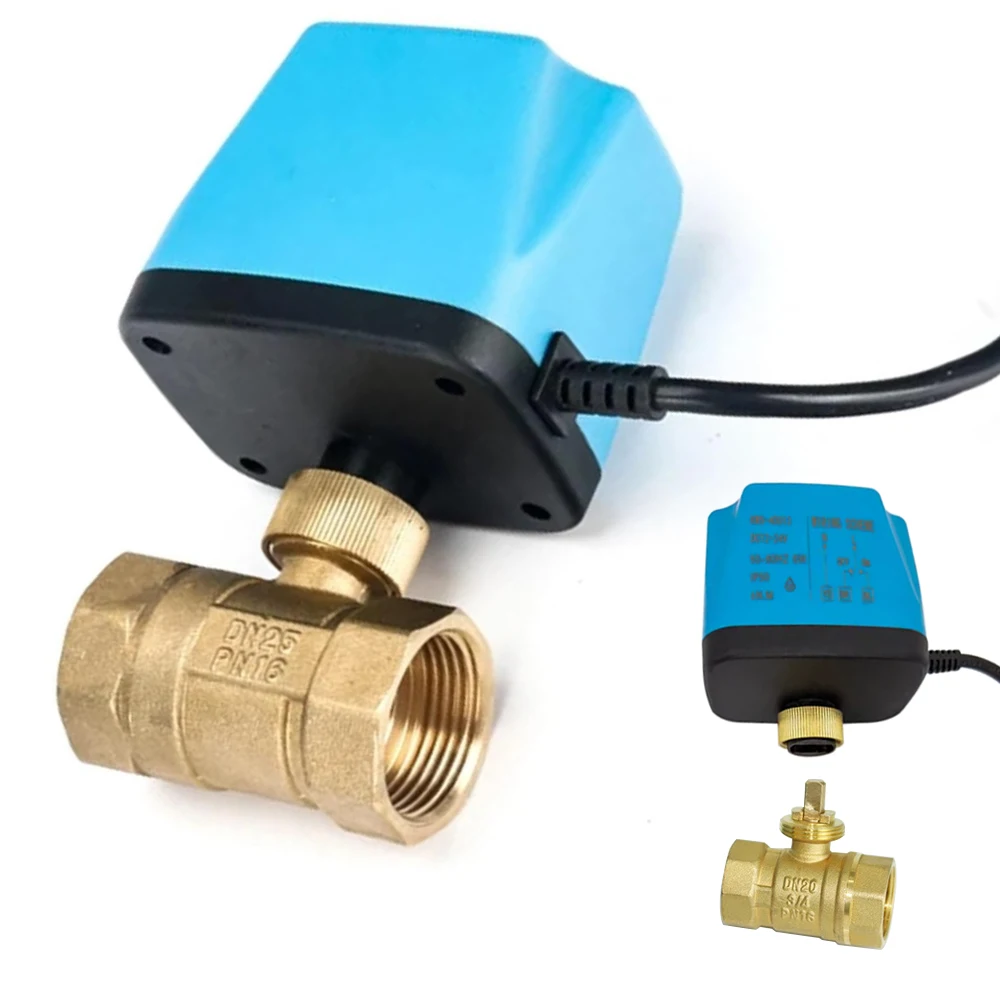

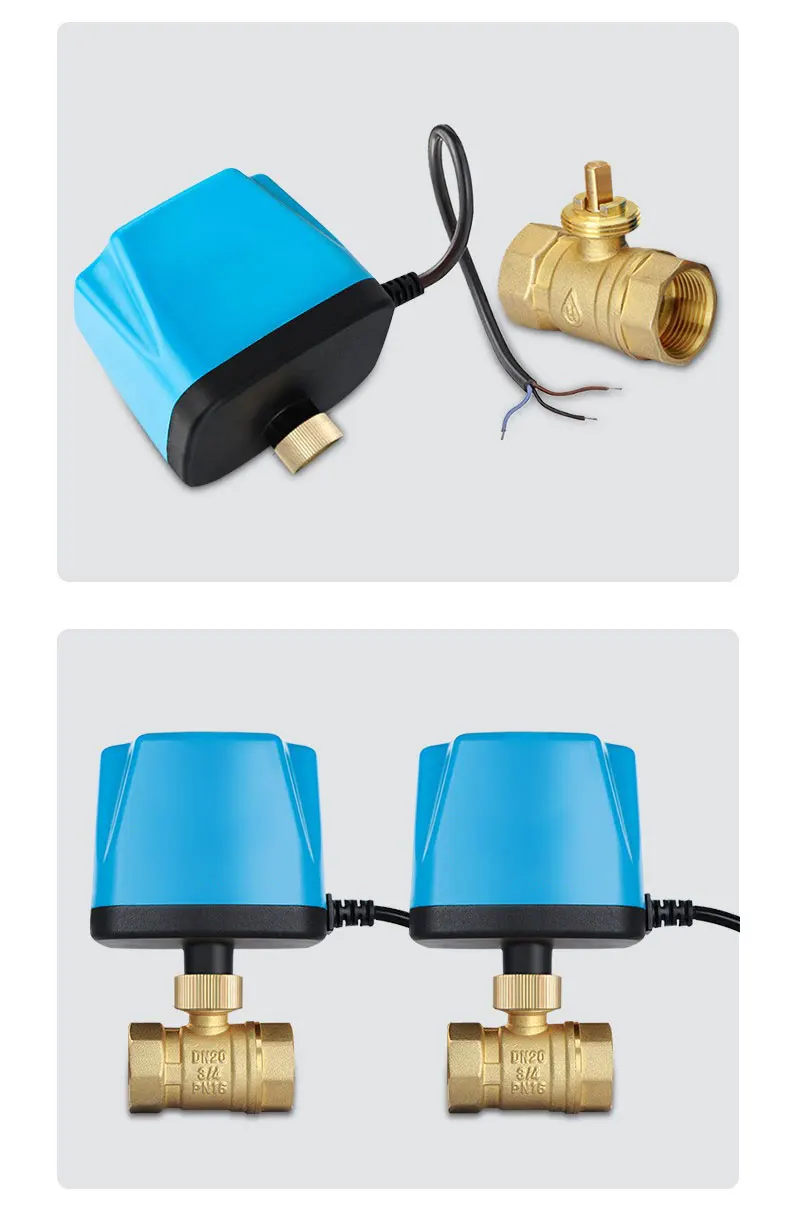

Product shooting
2ways,3ways DC12V-24V or AC220V Motorized Brass Ball Valve,3 Wires 2 Control Electric Ball Valve DN15 DN20 DN25 DN32 DN40 DN50
