Description
SPECIFICATIONS
Actuator Mode : Without Manual And Instruction
Brand Name : NoEnName_Null
Certification : CE, None
High-concerned chemical : None
Is Smart Device : No
Material : Brass
Media : Water
Model Number : 1/2
Origin : Mainland China
Power Source : AC
Pressure : Medium Pressure
Standard or Nonstandard : Standard
Structure : control
Temperature of Media : Medium Temperature

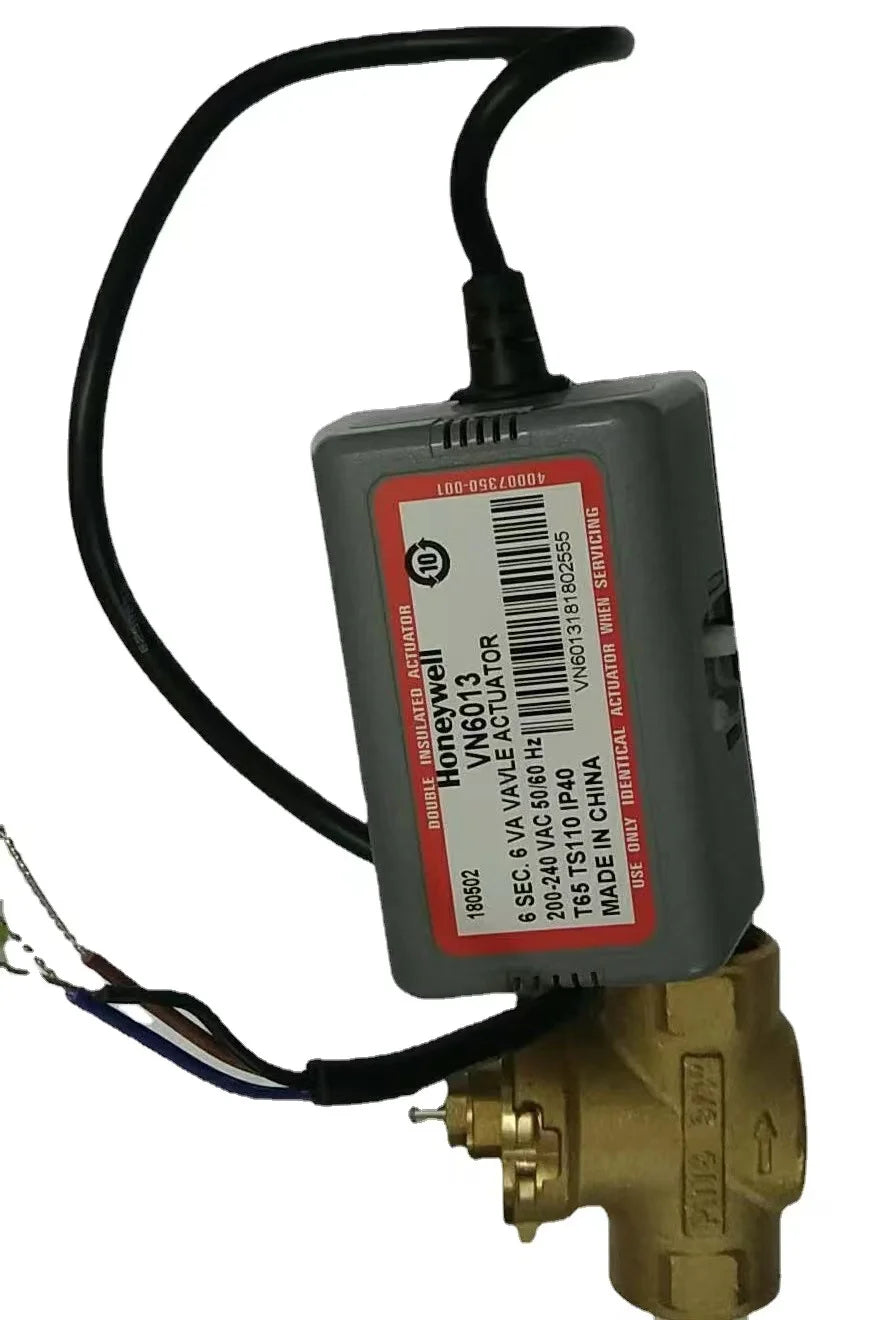

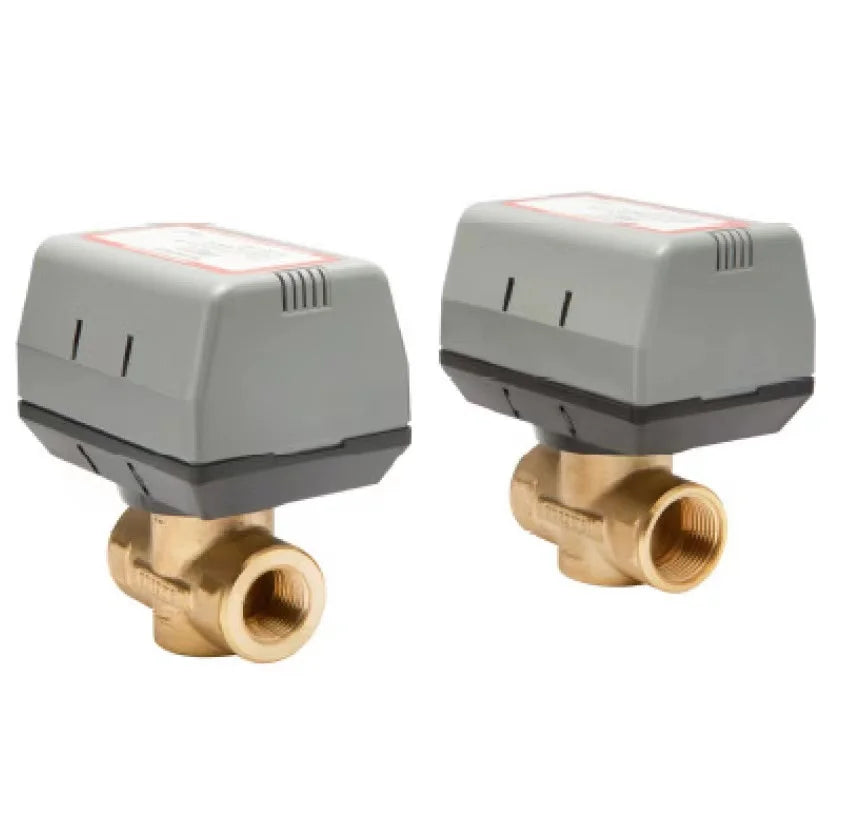

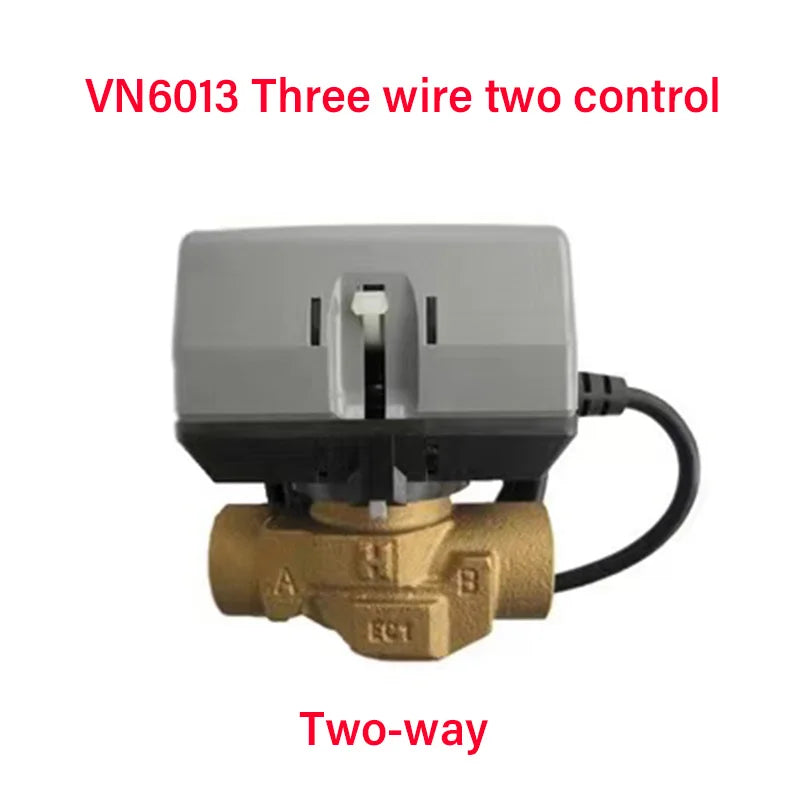

Honeywell motorized two-way valve application:

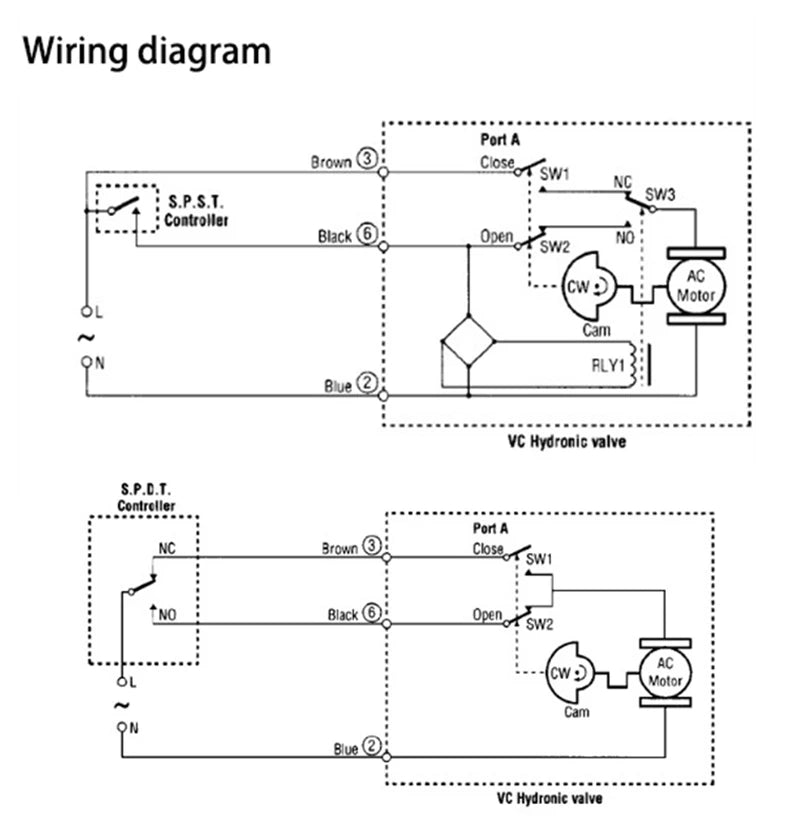

Honeywell motorized two-way valve can be used in homes and commercial buildings to control the on-off of hot and cold fluids. It includes an actuator and a valve body assembly. For example, they can be applied to stand-alone fan coils, wall panel radiators, convection air heaters, etc. Depending on the selected model, the product can be controlled by single-pole single-throw or single-pole double-throw controllers, such as room temperature controllers, water temperature regulators or water flow switches.
technical parameter:

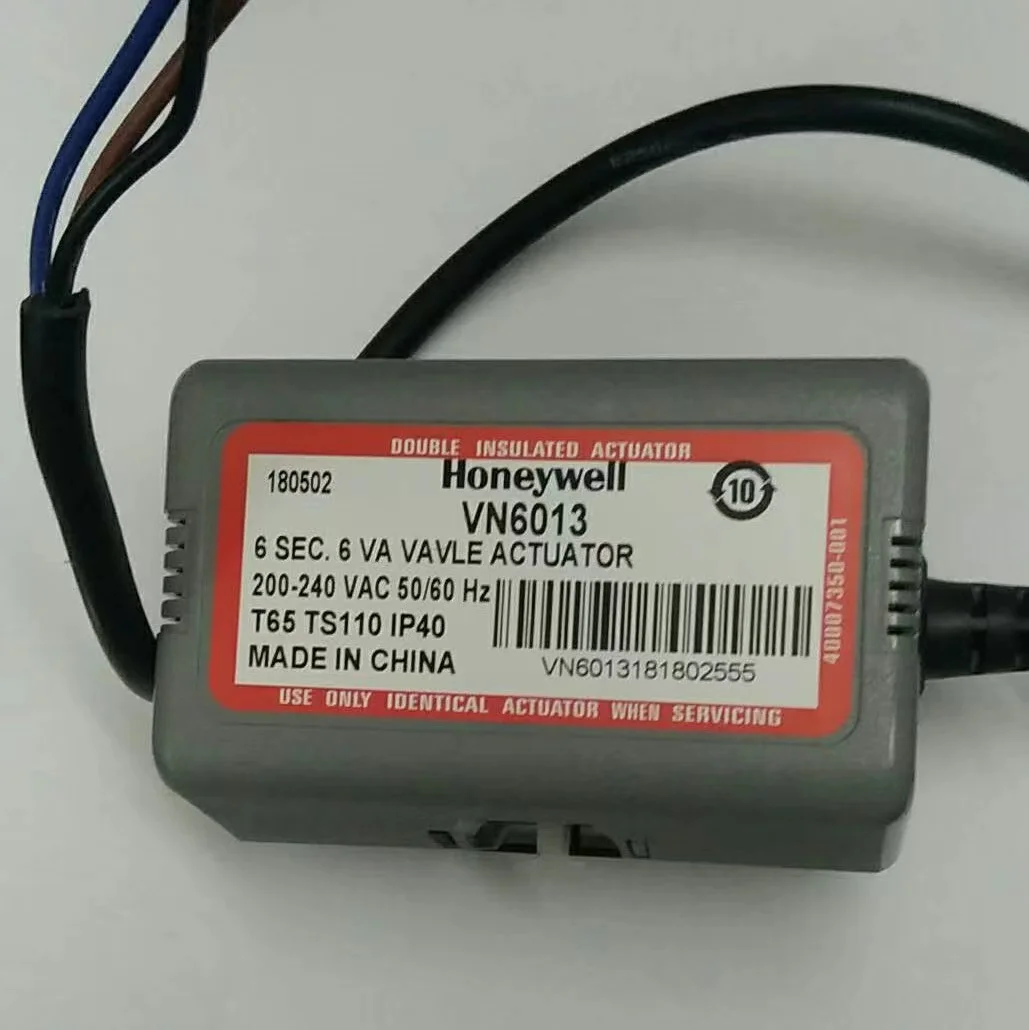

Actuator part
Control method: switch type
Voltage: 220Vac (±10%)
Power: 6 watts under normal voltage (only generated when the valve is actuated)
Action time: 6 seconds (at 60Hz)
Cable connection: 0.5m cable included

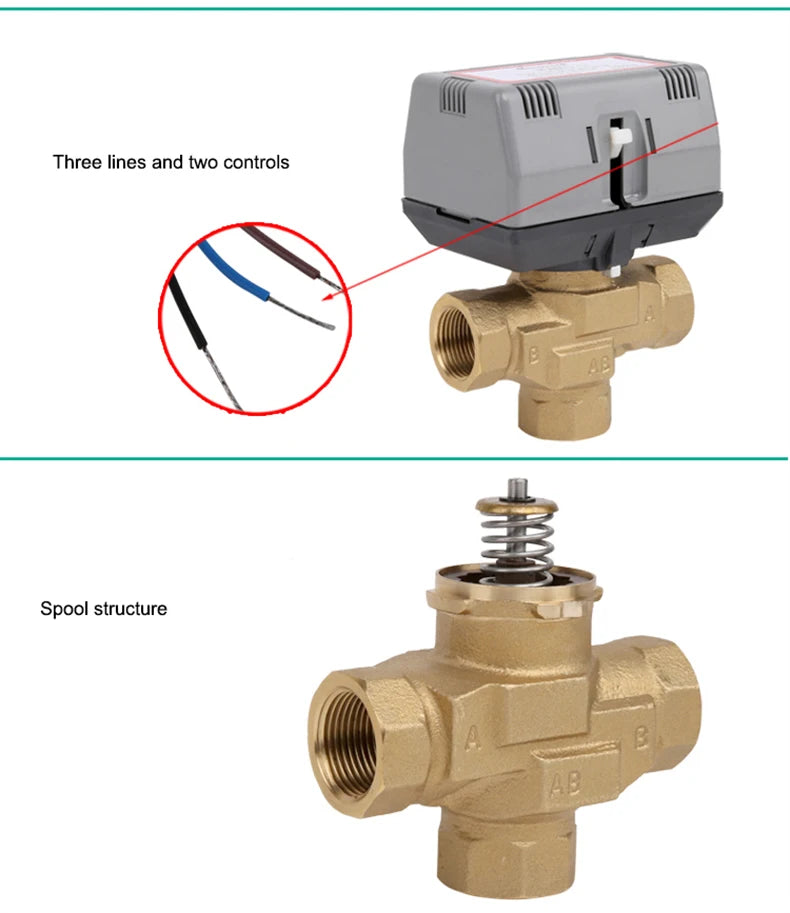

Valve body part
Applicable medium: hot and cold water, ethylene glycol solution with a mass concentration of not more than 50%
Liquid temperature range: 1℃~95℃ (34°F~203°F)
Working temperature: 0℃~65℃ (32°F~150°F)
Transportation and storage temperature: 0℃~65℃ (32°F~150°F)
Nominal pressure: 16 Bar

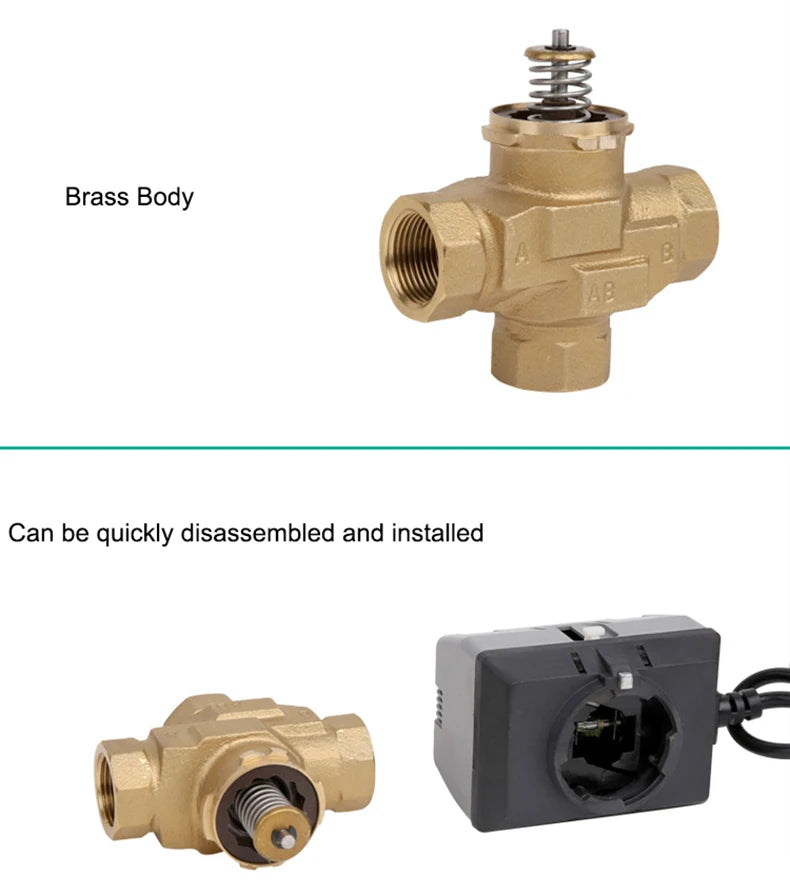

Material: Brass (forged)
Stem: stainless steel
