Description
SPECIFICATIONS
Actuator Mode : With Manual And Instruction
Brand Name : NoEnName_Null
Is Smart Device : No
Material : Brass
Media : Water
NC or NO : Normally Closed
Origin : Mainland China
Power Source : AC
Pressure : Low Pressure
Standard or Nonstandard : Standard
Structure : Ball
Temperature of Media : Normal Temperature
Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V
Structure Forms: Two Ways,

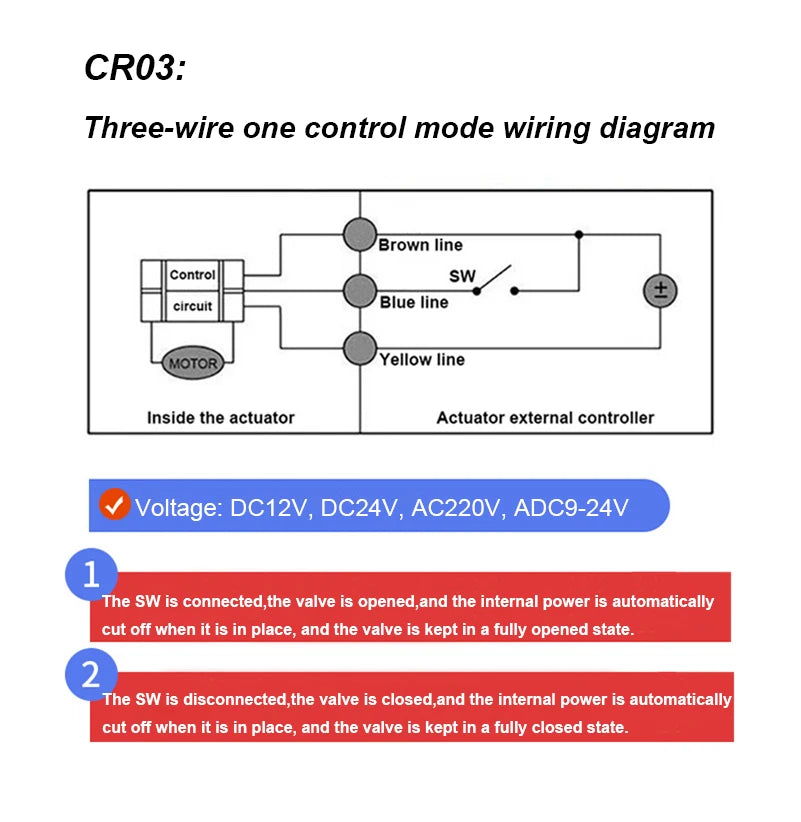

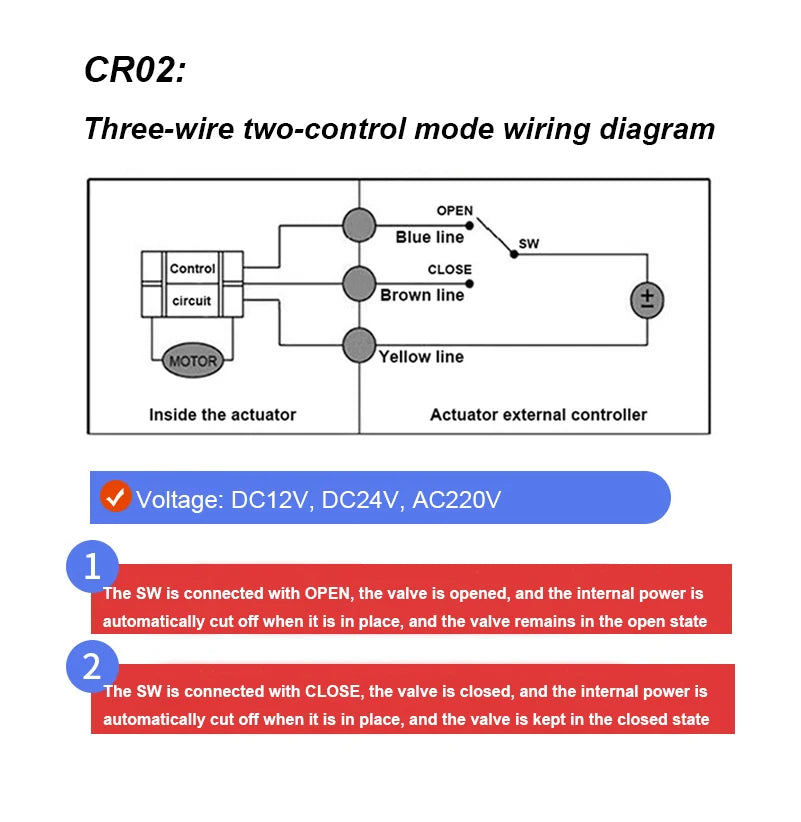

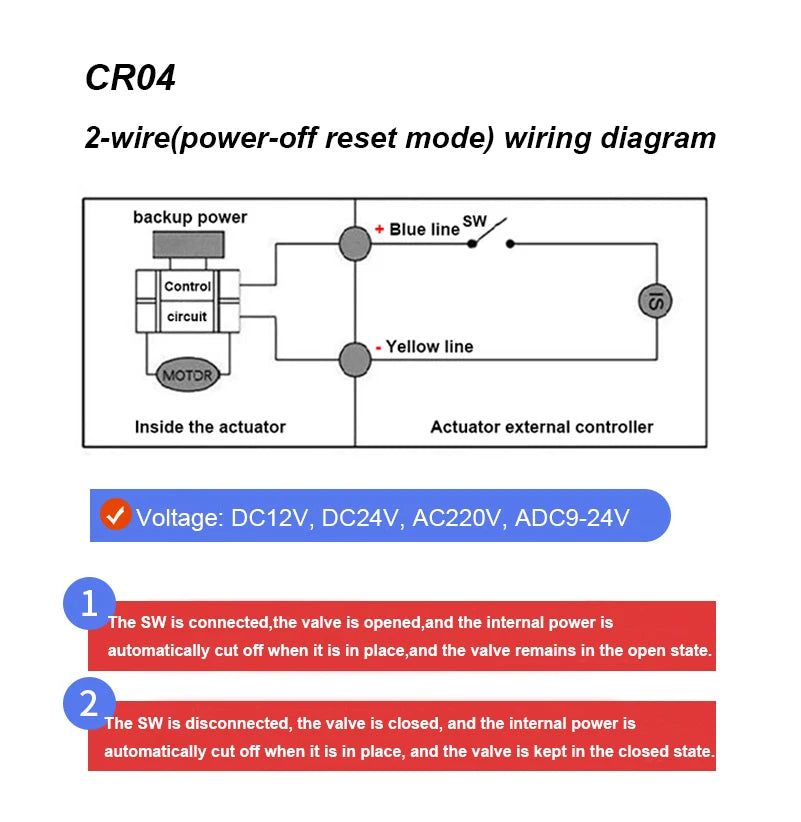

Operation Mode: Three Wire Two Ways Control / Three -wire One Control mode/2-wire, (power-off reset mode)
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa

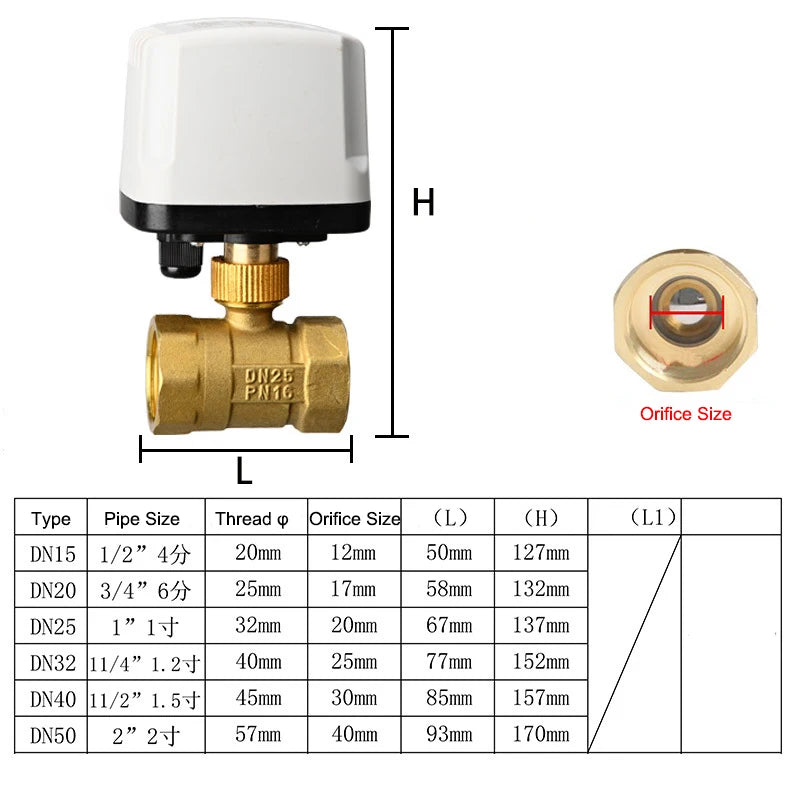

Connection Mode: G Internal Thread
Torque：220V 8NM, DC12/24V 6NM

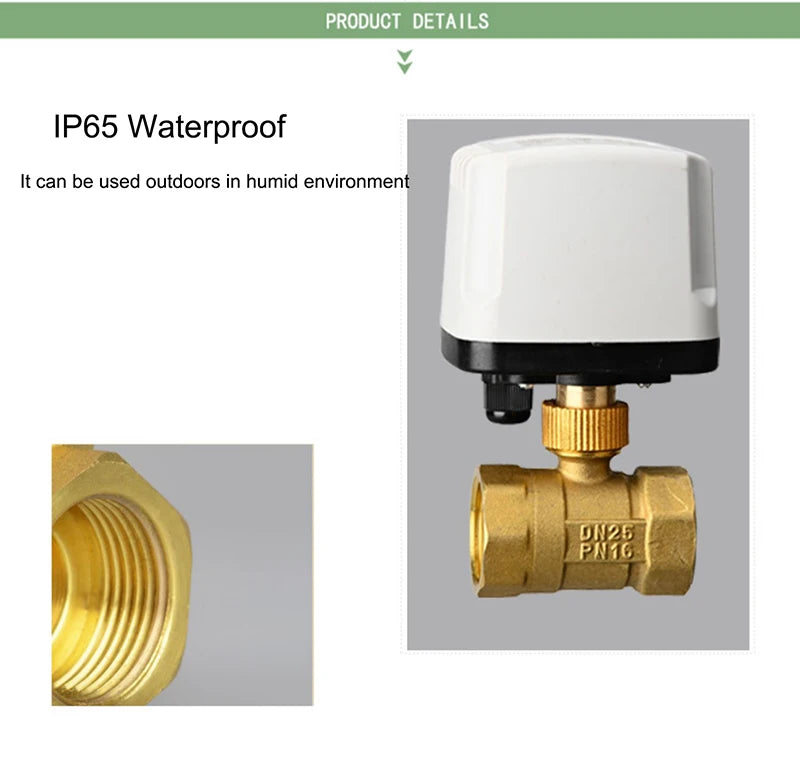

Waterproof level: IP65
