Description
SPECIFICATIONS
Actuator Mode : Without Manual And Instruction
Brand Name : Acarps
Certification : CE
High-concerned chemical : None
Material : Brass
Media : Water
Origin : Mainland China
Port Size : 1/2" 3/4" 1" 1-1/4" 1-1/2"
Power : Electric
Power Source : AC
Pressure : Low Pressure
Standard or Nonstandard : Standard
Structure : Ball
Temperature of Media : Normal Temperature

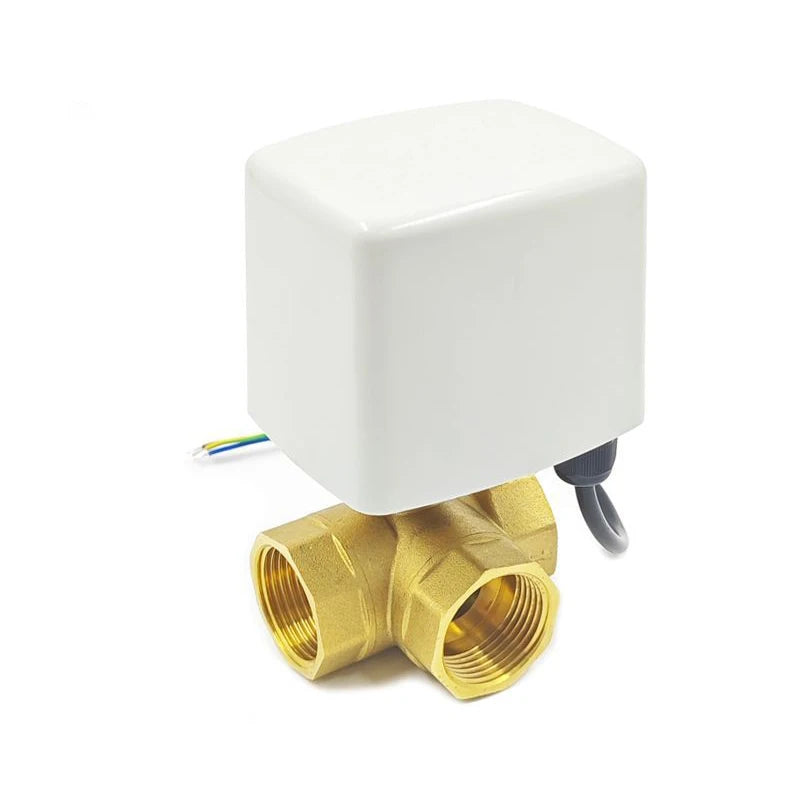

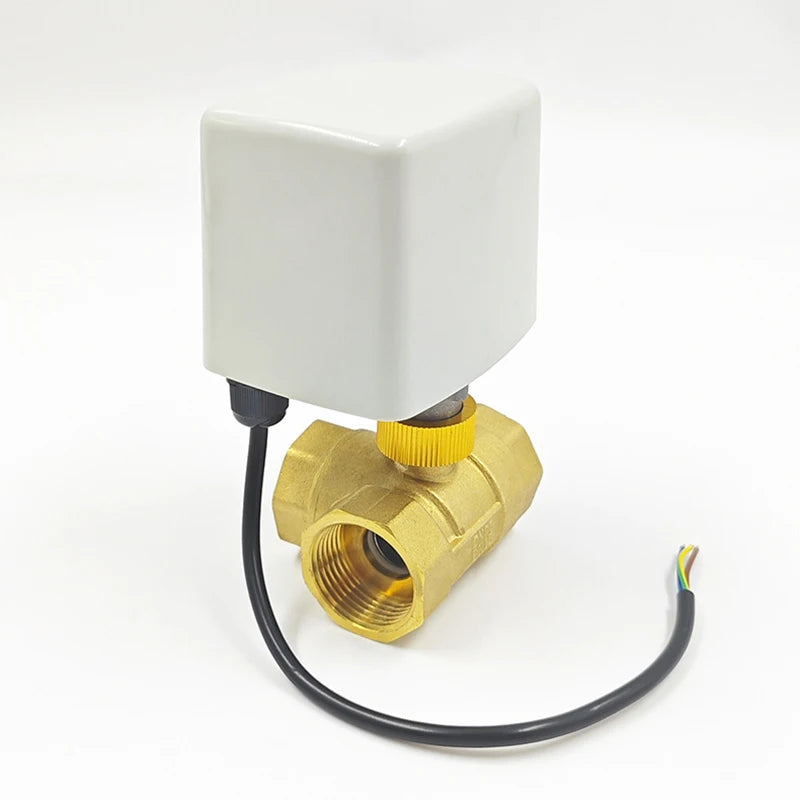

Product description:

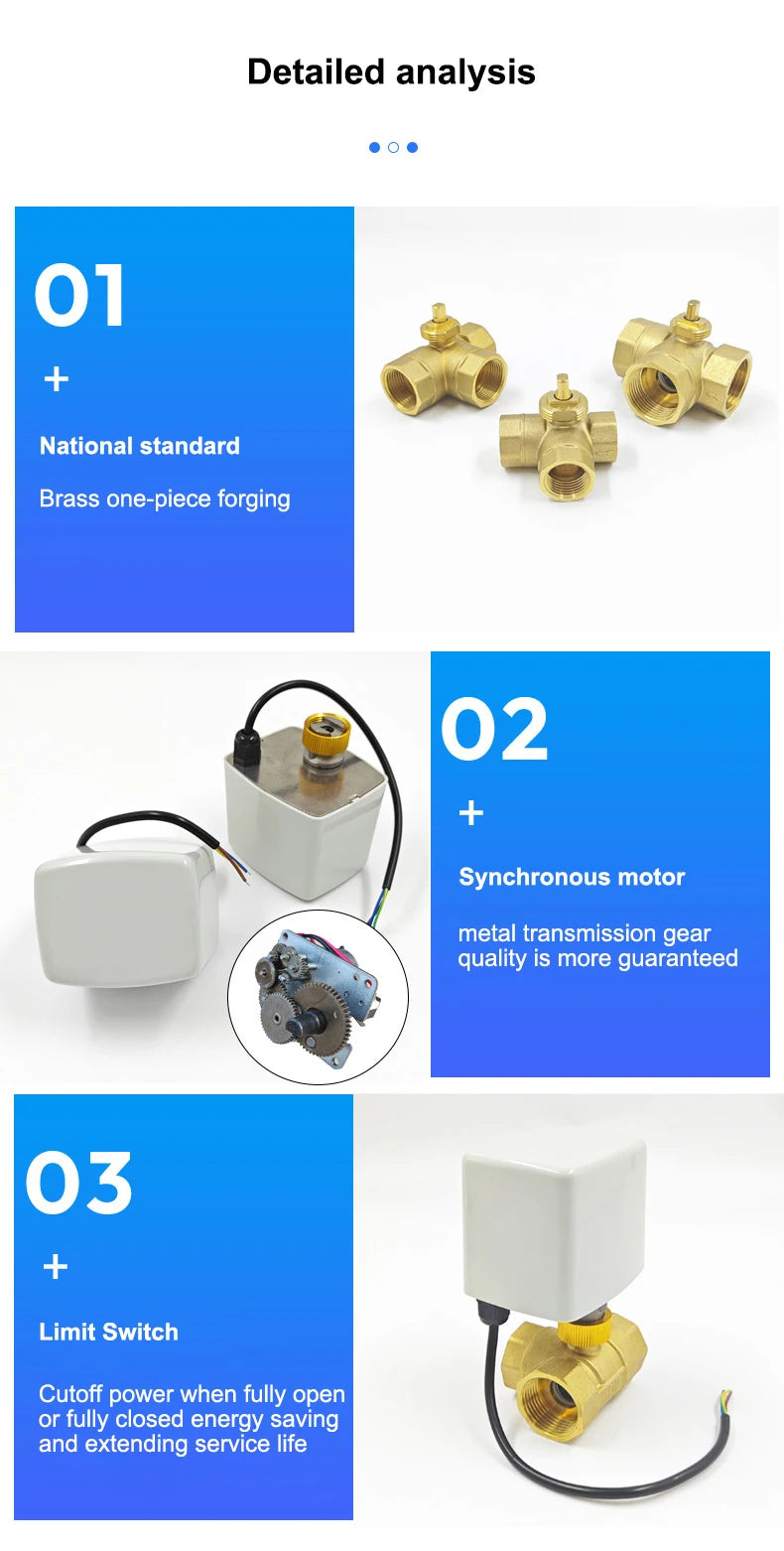

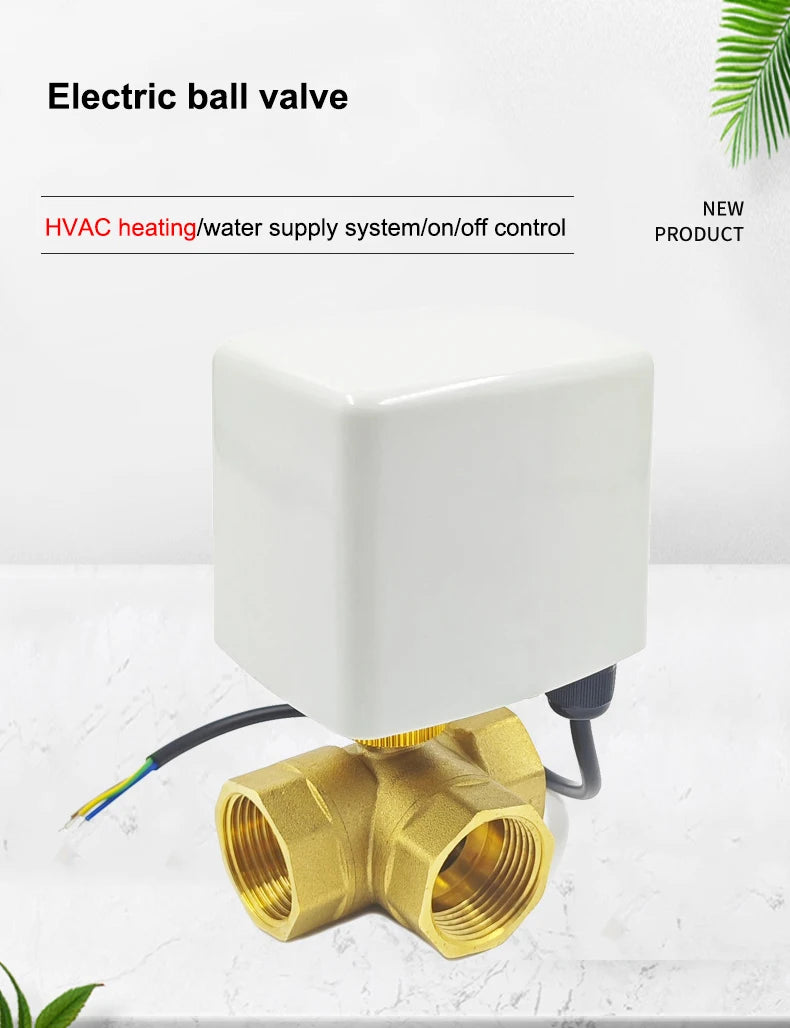

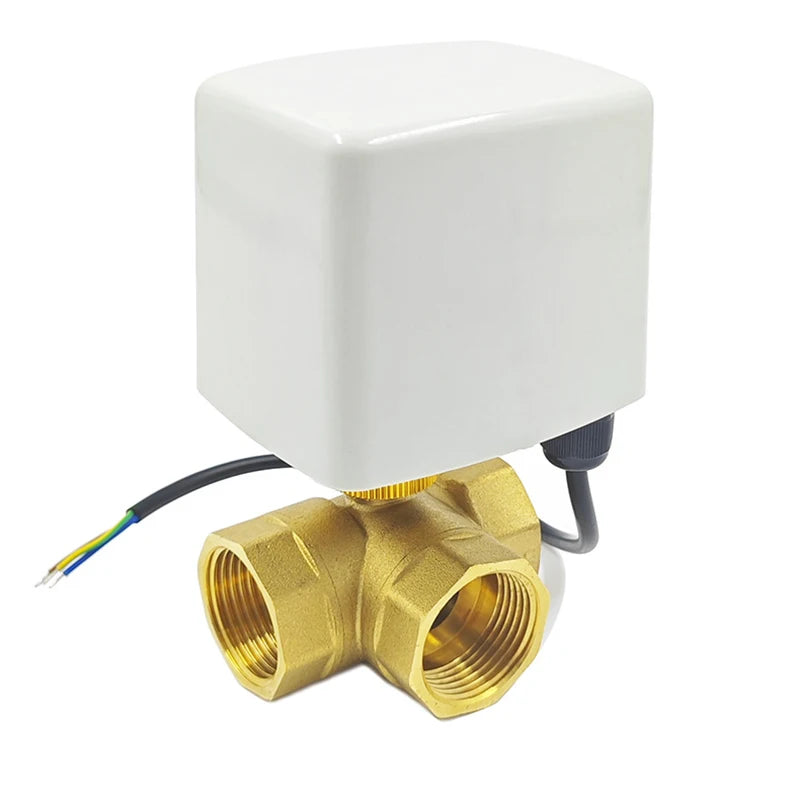

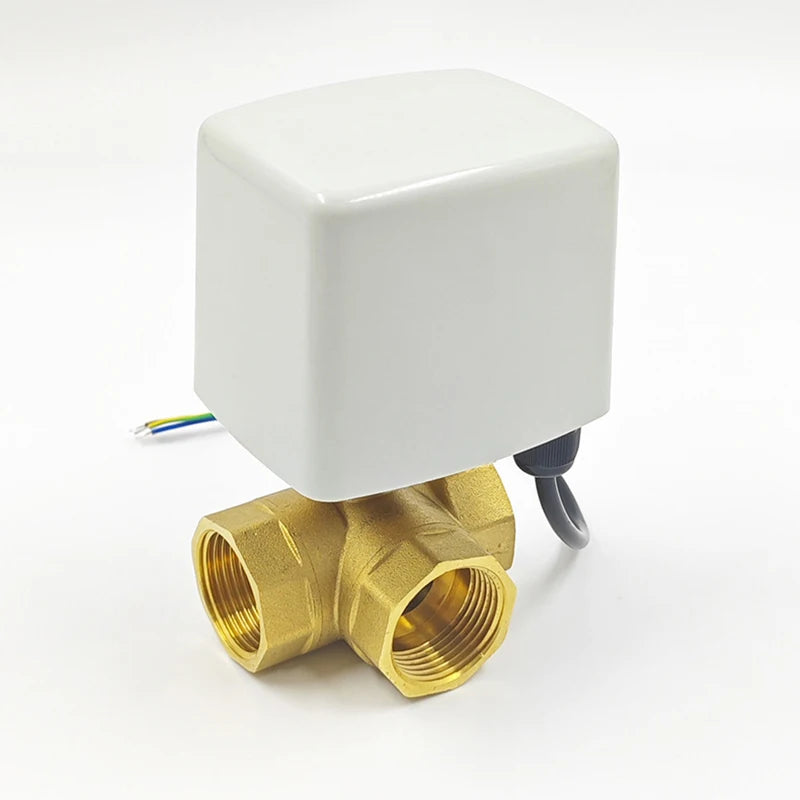

The electric ball valve is composed of a valve body and a driver. It has the advantages of simple structure, reliable work, strong fluid passing capacity and energy saving. It can be widely used in heating, central air-conditioning, solar hot water system, water treatment system cold and hot water switch control.
Specification
Applicable medium: cold, hot water or 50% glycol solution
Material: Brass

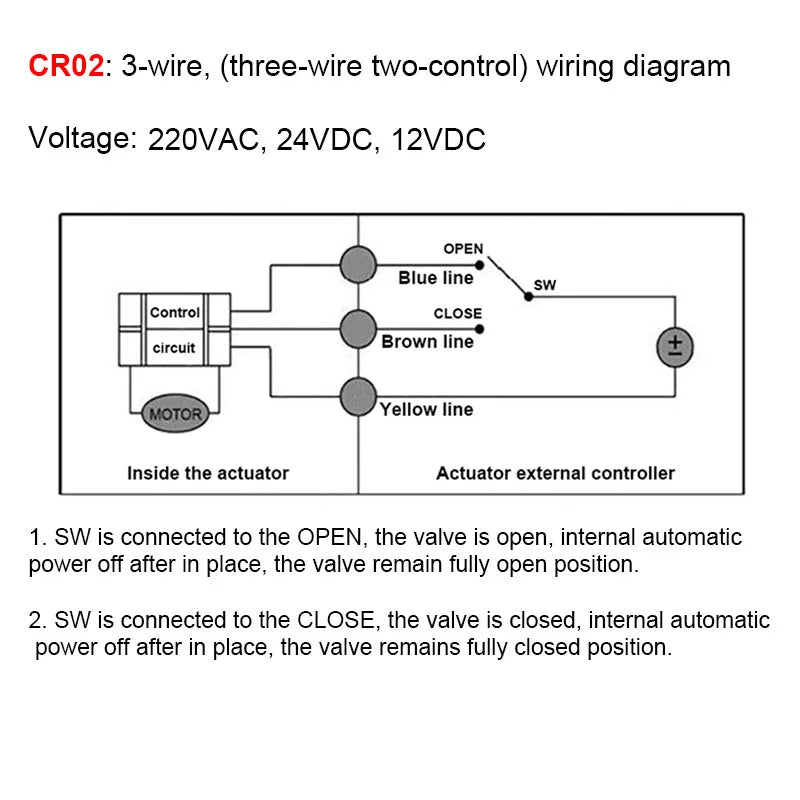

Control method: Three wire two control
Structure Forms: Three Way
Driving voltage: AC220V AC24V DC24V DC12V
Power: 6W (Only when the valve is opened and closed)
Life Time: 100,000 times
Play time: 5-15 seconds
Drive torque: 8 NM
Nominal pressure: 1.6 MPa
Applicable medium temperature: 0-95℃
Applicable ambient temperature: 0-65℃
Connection method: G internal thread
