Description
SPECIFICATIONS
Brand Name : NoEnName_Null
High-concerned chemical : None
Is Smart Device : No
Material : Brass
Media : Water
Origin : Mainland China
Power Source : AC
Pressure : Medium Pressure
Standard or Nonstandard : Standard
Structure : Ball
Temperature of Media : Normal Temperature

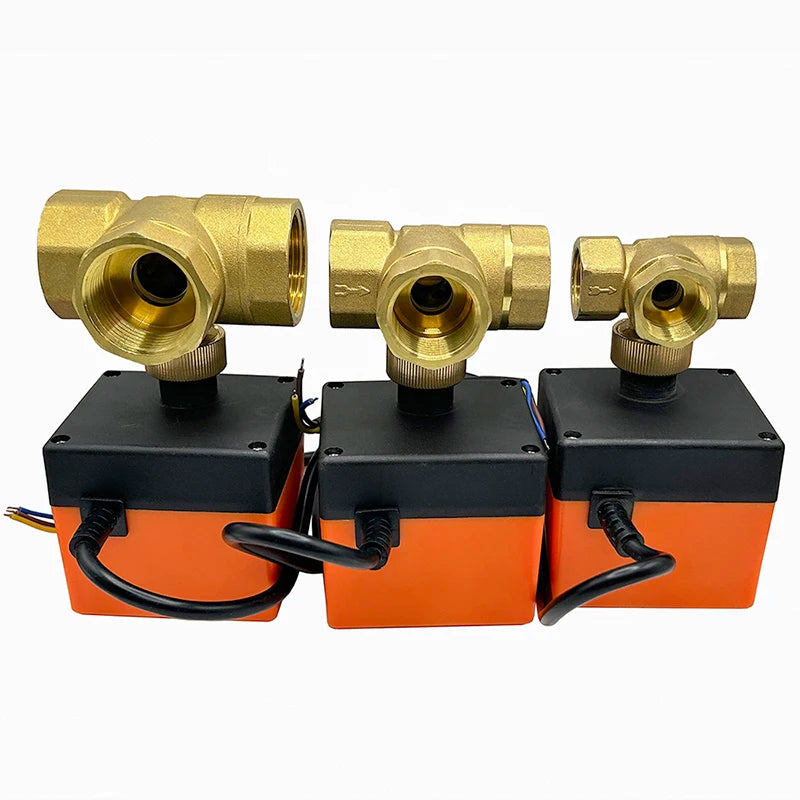

Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V/AC24V
Structure Forms: Three Ways,
Operation Mode: Three Wire Two Ways Control
Power: 6W (Only when the valves open and close)
Running Time: 8-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque：220V 8NM, DC12/24V 8NM
Waterproof level: IP54

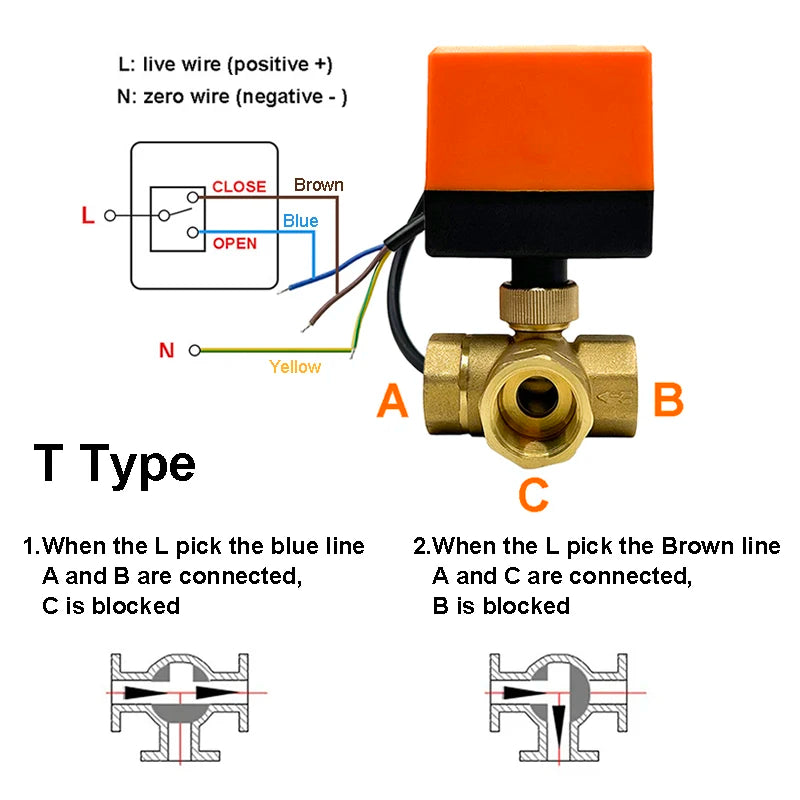

T type:
1.When the L picks the blue line, A and B are connected, C is blocked.
2.When the L picks the Brown line, A and C are connected, B is blocked.

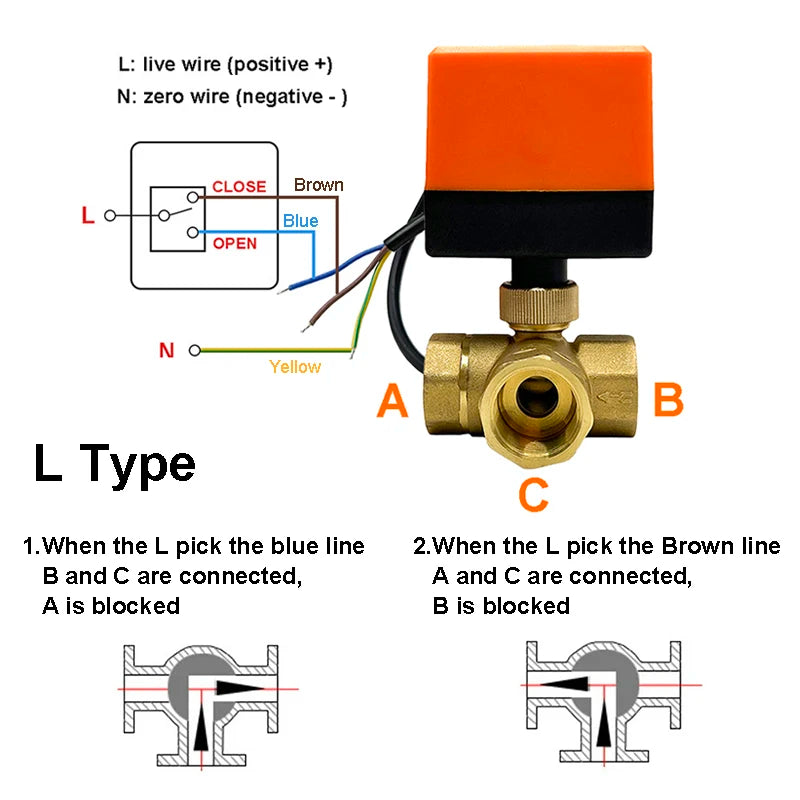

L type:
1.When the L picks the blue line, B and C are connected, A is blocked.
2.When the L picks the Brown line, A and C are connected, B is blocked.
