SPECIFICATIONS

Accessory: Cord

Battery Properties: Without Battery

Control Method: Touch

Fan Type: Blower

Feature: Other Features

Finish Type: Polished

Item ID: AJ196505

Operating Voltage: 220V (included)-240V (included)

Origin: Guangdong,China

Plug Type: European Standard Plug

Power Supply: Plug Powered

Recommended Scenario: Ventilating

Special Features: High speed

Description:

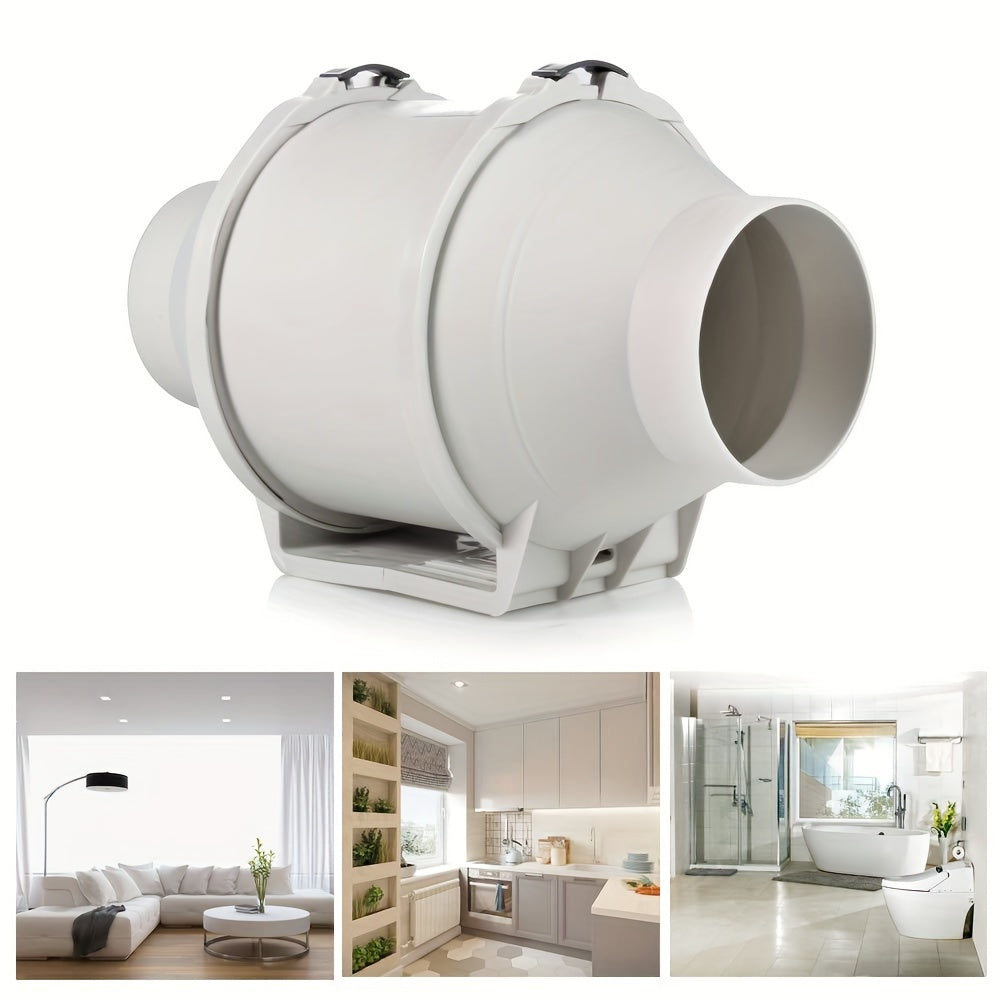

The Mixed Flow Fan can be used for exhaust and supply ventilation systems that require high pressure, powerful airflow and low noise levels,are the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchen, as well as ventilation for apartments, house, shops, cafes, restaurant, cinemas etc.

Design:

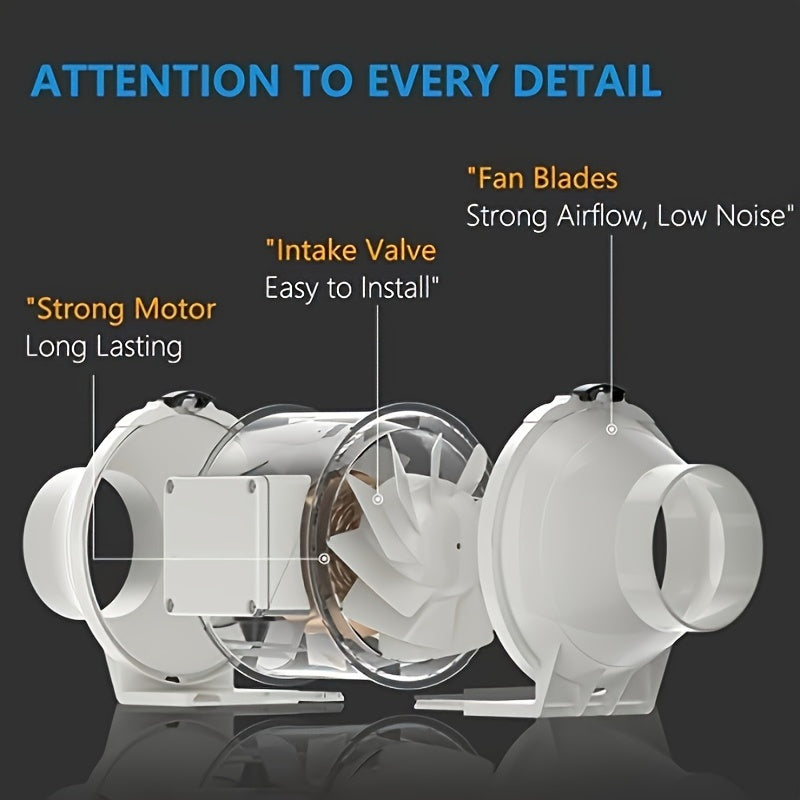

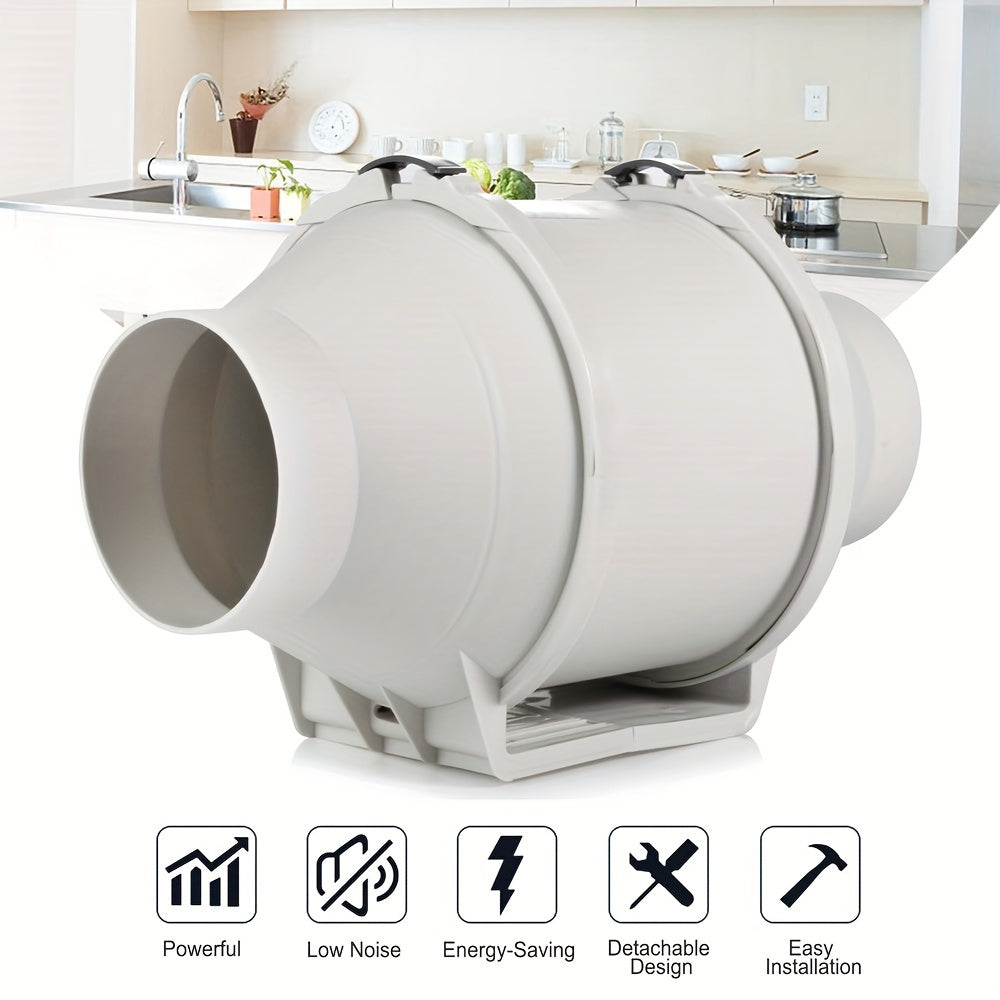

The motor is attached to the body of the fan by two quick release clips which enables the motor to rotate to provide connection for confined spaces and removal for maintenance without removing the whole fan or duct.

Motor:
The motor has two selectable speeds and are fitted with standard overheat protection and overload protection as well as automatic restart.

Installation:

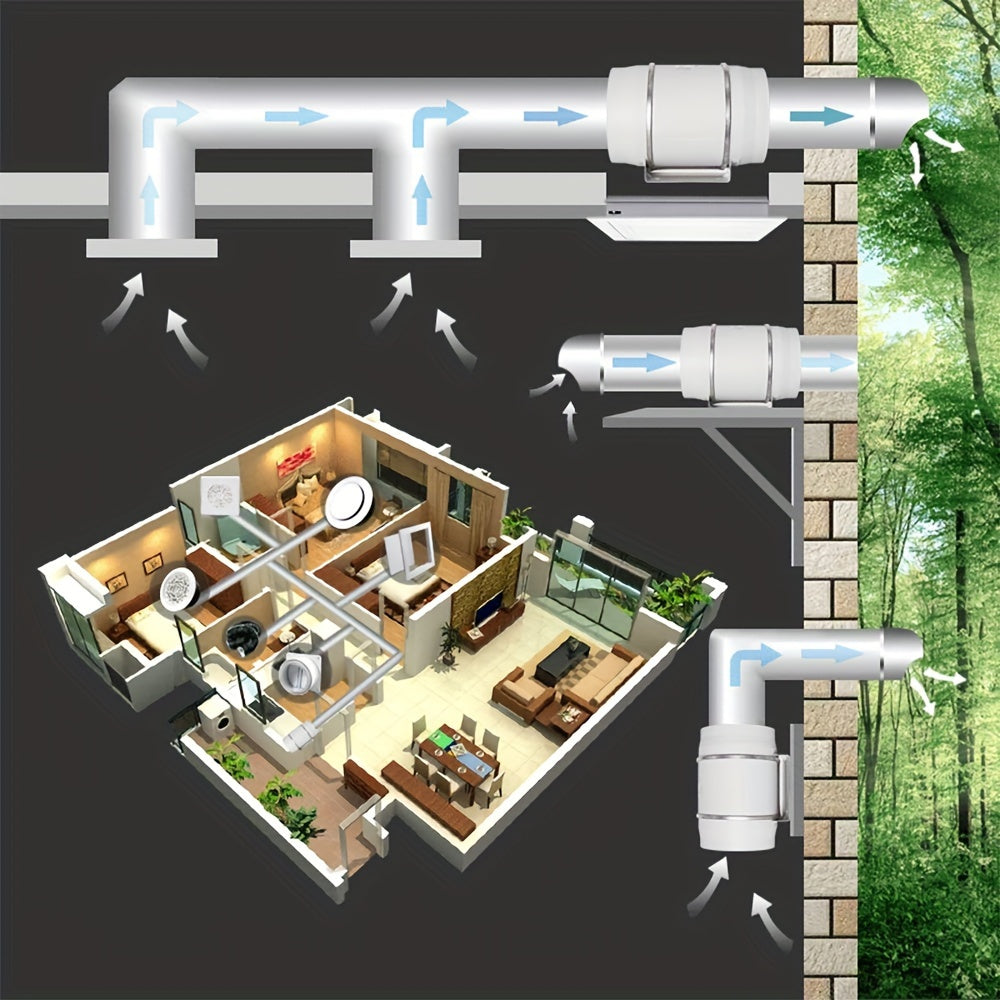

The inline duct fan can be installed in the ducting one or more at any angle,vertically or horizontally.All fans can be mounted in parallel to increase the volume of air or in series to increase the pressure. Operating ambient temperature range is -20℃ to 60℃.

Specification:

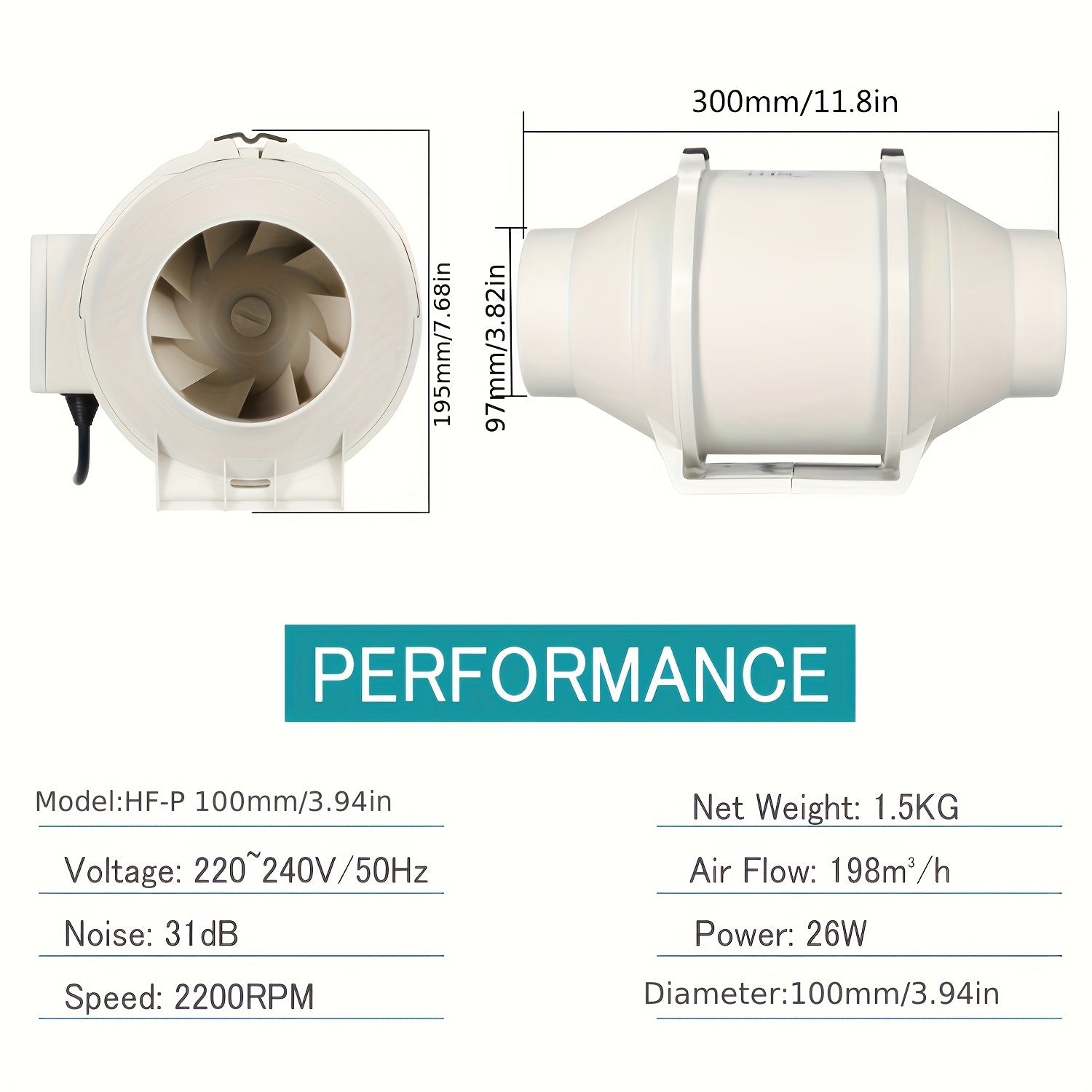

4in (100mm)
Two Speed: Low/High
Voltage: 220-240V
Frequency: 50Hz
Power: 23/26W
Current (Amps): 0.11/0.12
Speed(RPM): 1850/2200
Air Volume: 165/198 m³/h
Air Pressure: 131/156Pa
Noise: 26/31dB
Life: Over 50000 Hours
Weight: 1.5 KG
Electric Current Type: AC
Blade Material: ABS Plastic
Diameter: 4inch(100mm)

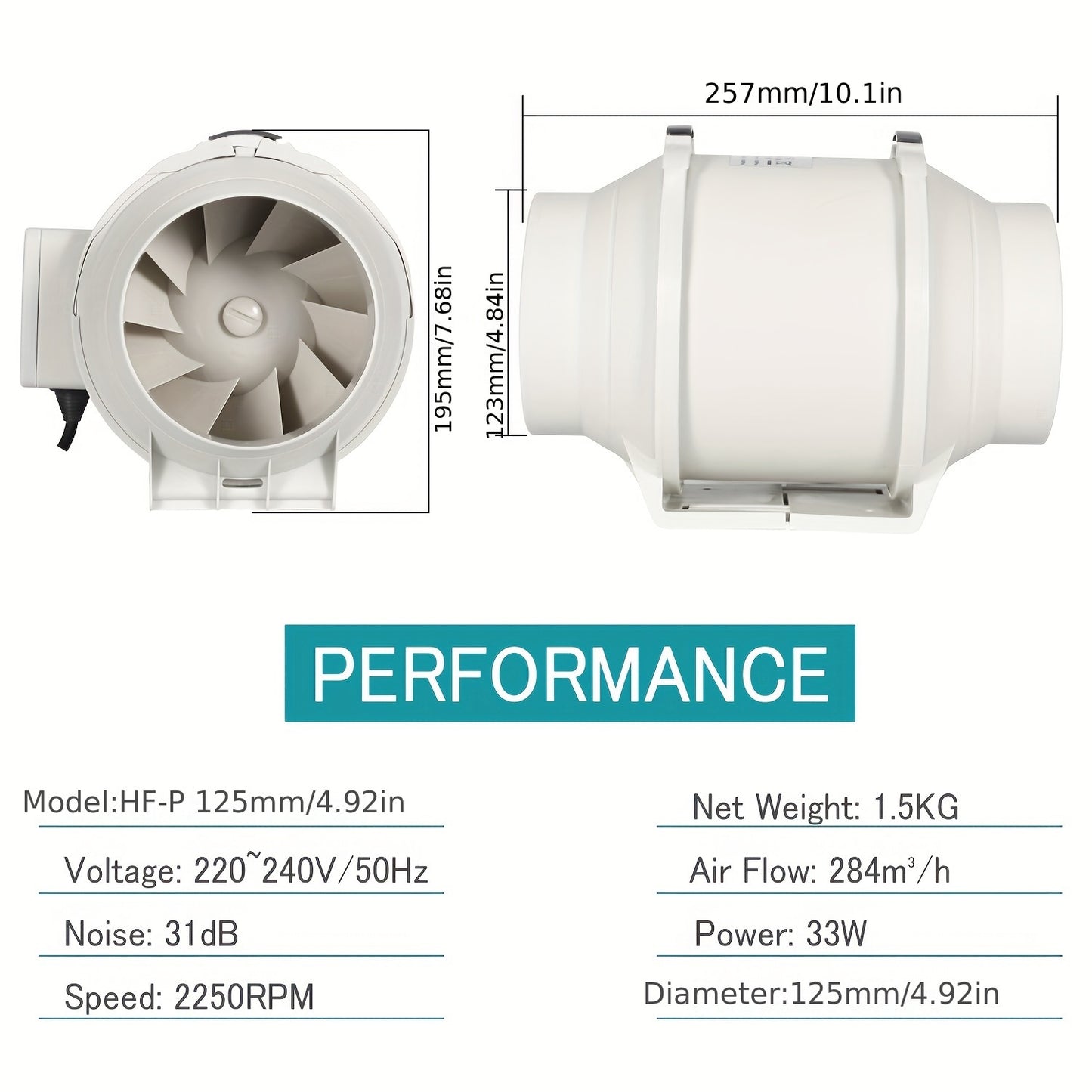

5in (125mm)
Double Speed: Low/High
Voltage: 220-240V
Frequency: 50Hz
Power: 28/33W
Current (Amps): 0.13/0.14
Speed(RPM): 1850/2550
Air Volume: 248/284 m³/h
Air Pressure: 106/159Pa
Noise: 26/32dB
Life: Over 50000 Hours
Weight: 1.5 KG
Electric Current Type: AC
Blade Material: ABS Plastic + Metal
Diameter: 5inch(125mm)

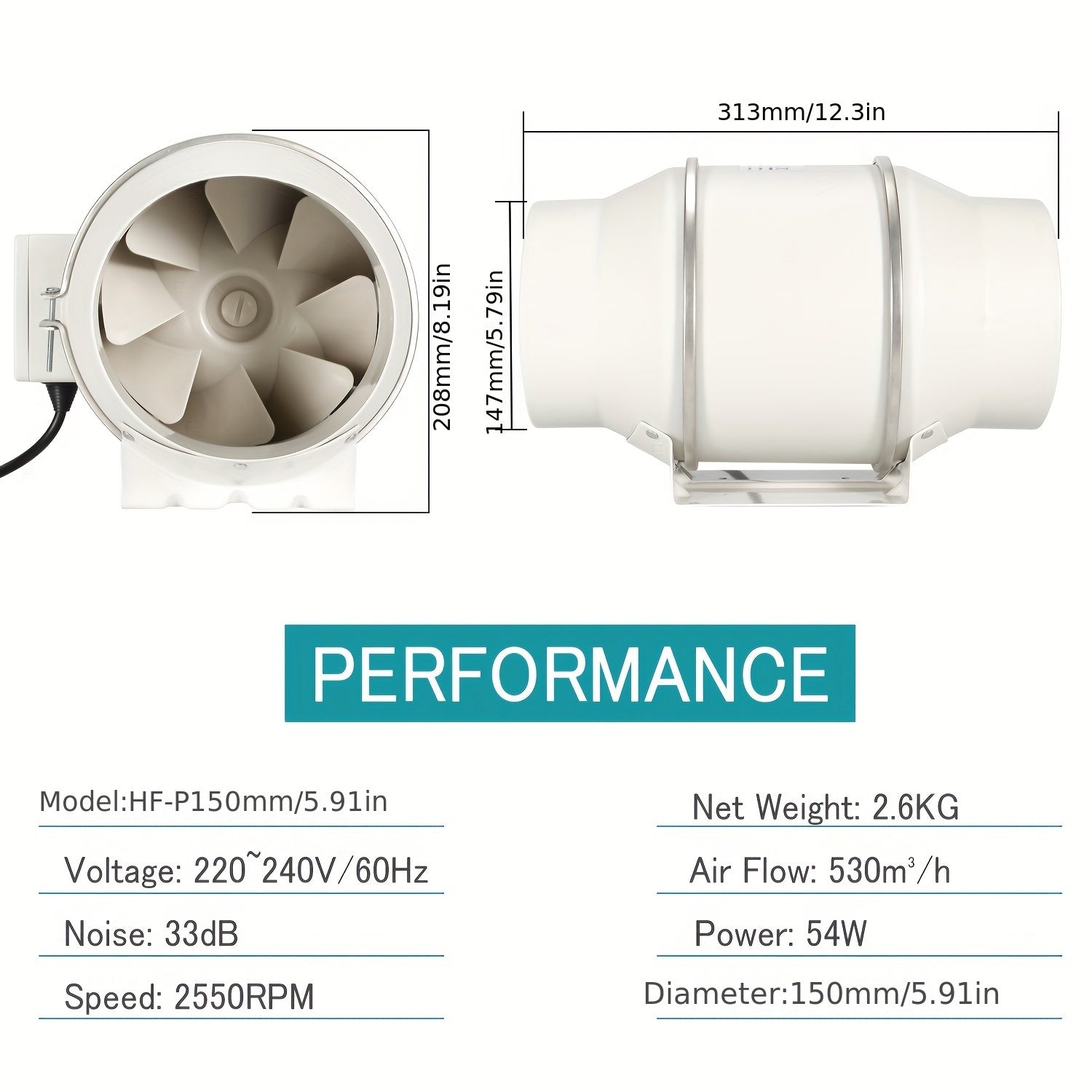

6in (150mm)
Double Speed: Low/High
Voltage: 220-240V
Frequency: 50Hz
Power: 44/54W
Current (Amps): 0.19/0.22
Speed(RPM): 1850/2550
Air Volume: 410/530 m³/h
Air Pressure: 240/300Pa
Noise: 29/33dB
Life: Over 50000 Hours
Weight: 2.6 KG
Electric Current Type: AC
Blade Material: ABS Plastic + Metal
Diameter: 6inch(150mm)

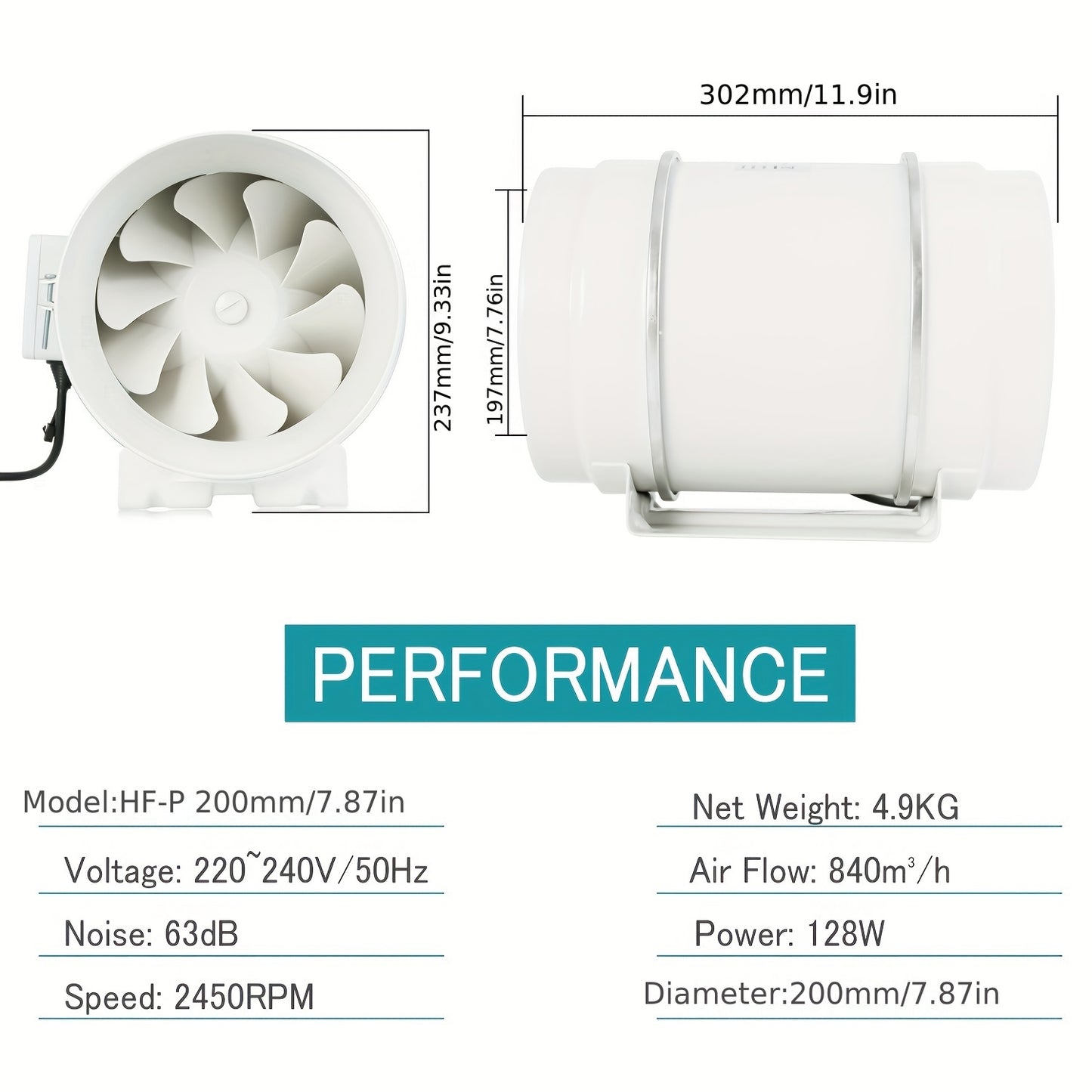

8in (200mm)
Double Speed: Low/High
Voltage: 220-240V
Frequency: 50Hz
Power: 123/128W
Current (Amps): 0.52/0.53
Speed(RPM): 1950/2450
Air Volume: 690/840 m³/h
Air Pressure: 274/352Pa
Noise: 55/63dB
Life: Over 50000 Hours
Weight: 4.9 KG
Electric Current Type: AC
Blade Material: ABS Plastic + Metal
Diameter: 8inch(200mm)
